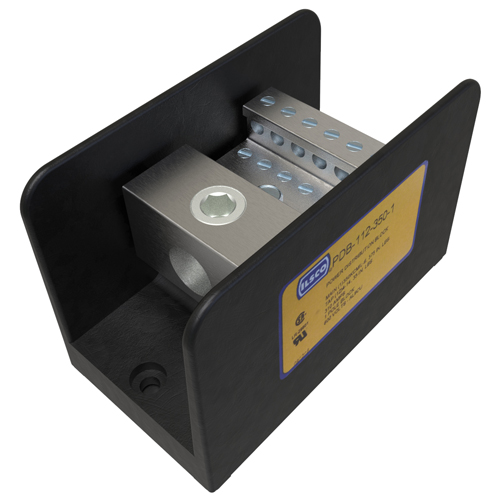

Image thumbnail 2
To:
CC:

Ilsco PDB-112-350-1 Power Distribution Block, Dual Rated, Line Conductor Range 350-6, Load Range 4-14, 1 Port Per Pole Line Side, 12 Ports Per Pole Load Side, 1 Pole, UL, CSA

Manufacturer: Ilsco | Catalog # PDB-112-350-1 | QED Part # 152879
$255.02 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 4 Str - 14 Str, 13 conductors, 13 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap Slotted, rated for 600 V, primary color Black, 1 poles, 1 ports per pole primary, 12 ports per pole secondary,

Technical Information

Amperage
310 Amp
Applications
Power Distribution Block
Conductor Size
6 AWG-350 kcmil
Connection Type
Screw
Enclosure
Valox
Material
Aluminum
Number of Conductors
13
Number of Poles
1 Pole
Spacing
4-3/4 in
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Terminal Material
Tin Plated
Type
1-Level
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669710557
Color
Black
Finish
Tin Plated
Product UPC
78366971055
