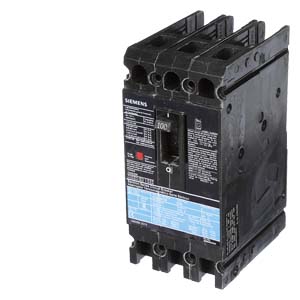

Siemens ED63B100L 3-Pole 100 Amp 600 Volt 18 kA Circuit Breaker Lugs

Manufacturer: Siemens | Catalog # ED63B100L | QED Part # 106230
$830.56 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 100A 3-POLE (18KAIC AT 600V) (25KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: LINE AND LOAD SIDE LUGS (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN: 3.00 x 6.4 x 3.92.

Technical Information

Actuator
Varying
Amperage
100 Amp
Applications
Standard 40C Breaker
Current
100 Amp
Enclosure
Varying
Frame
ED
Interrupt Rating
18 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40degrees C
Tc Connection
Line/Load lugs installed
Trip Range
N/A
Trip Type
Thermal Magnetic
Type
ED6
Voltage
250 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643236387
Product UPC
78364323638
Weight
3.870 lb

Dimensions

Height
7 Inch
Length
8.85 Inch
Width
4.500 in

Certifications and Compliance

Country of Origin
Mexico
