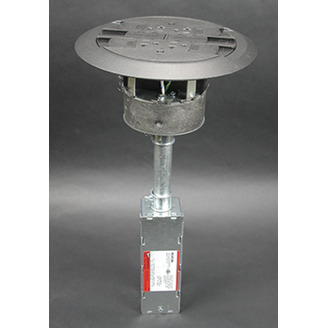

Wiremold RC4ATCBK 8-1/4 x 16-3/8" 20 Amp Black Poke-Through Assembly
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # RC4ATCBK
QED Part # 1731469
Fire Rated Poke Through Box


  • Product Depth US: 16.38
  • Product Height US: 8.25
  • Product Width US: 8.25
  • Product Volume US: 1114.86
  • Product Weight US: 5.67
  • Country Of Origin: MX
  • Certifications: ROHS,NAFTA,CULUS


Long Description Unit includes four prewired 20A receptacles. Each duplex receptacle is wired as separate circuit. The duplex can be wired as a standard receptacle or isolated ground. Finish flange available in gray (GY), black (BK), ivory (VY) or brushed metal finishes in aluminum (AL), and brass (BS). Aluminum and brass flanges shipped with black slide cover. Brass flange also available with nonmetallic brass colored slide holder (AB). Aluminum flange also available with nonmetallic aluminum colored slide holder (AA). Includes Wiremold Open System unloaded adapters to accept four discrete keystone connectors from most manufacturers. Unit also includes Ortronics TracJack Mounting adapters and Ortronics Series II Communication Housing. Modular jacks sold separately. NOTE: Assembled with scrub water gasket. For use on tile or carpet floors. RC4 Series Poke-Thru Devices require a 4" (102mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8" minimum. Black
GTiN 00786564131540
Color Black
Type RC Series Poke-Thru
Material Steel Stem, Aluminum Cover
Applications Open Space Concrete Floors
Mounting Type Step On It, Retainin
Country of Origin Mexico
Family Brand Name Wiremold
Construction Assembled
Certifications CULUS,NAFTA,ROHS
Cable Entry 1/2 in, 3/4 in Knockout
Sub Brand Wiremold
