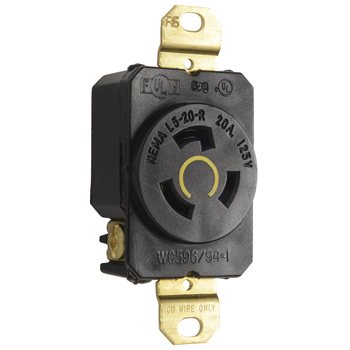

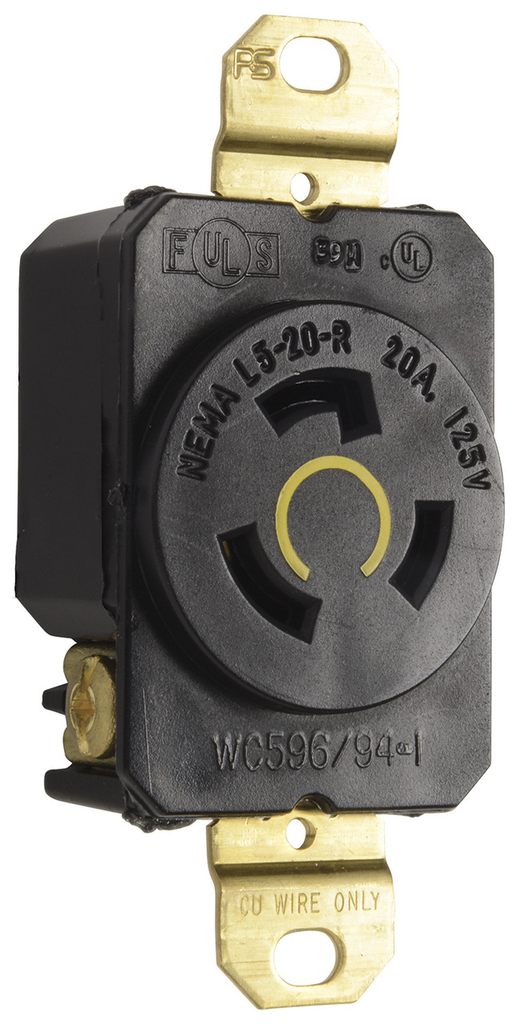

Pass & Seymour L520-R 20 Amp 125 VAC 2-Pole 3-Wire NEMA L5-20R Impact-Resistant Nylon Locking Single Receptacle
$16.87/ea
In Stock | 212 available at 7 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L520-R
QED Part # 121536
Single

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Depth (US): 1.19"
  • Height (US): 3.28"
  • Width (US): 1.61"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: L520
  • Volts: 125V
  • Volts (AC): 125

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Turnlok Receptacle Single, 2pole 3wire, 20amp 125v
GTiN 00785007252057
Finish Gloss
Width 1.61 in
Size 3.3 in
Color Black
Voltage 125 Volt
Type Turnlock Single Receptacle
Material Nylon
Conductor Size 4 AWG
Applications Industrial Spec Grade
Mounting Type Flush
Depth 1.19 in
Height 3.28 in
Grade Industrial/Specifica
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA L520
Certifications CULUS
Amperage 20 Amp
Blade Dimensions 3.3 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Turnlok
