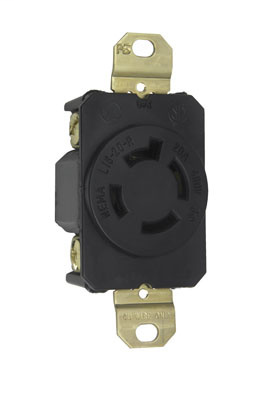

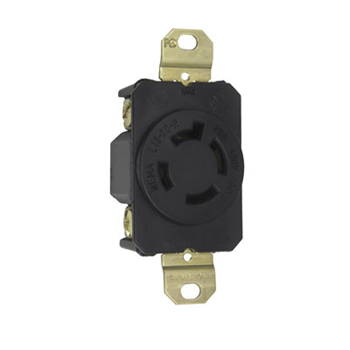

Pass & Seymour L1620-R 20 Amp 480 VAC 3-Phase 3-Pole 4-Wire NEMA L16-20R Impact Resistant Nylon Locking Single Receptacle
$27.09/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L1620-R
QED Part # 121529
Single

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

General Info

  • Type: Single Receptacles
  • Number Of Wires: 4

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • cULus: No
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Depth (US): 1.19"
  • Length (US): 3.28"
  • Width (US): 1.61"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: L1620
  • Volts: 480V
  • Volts (AC): 480

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Turnlok Single Receptacle 4wire 20amp 3phase 480v
GTiN 00785007162059
Length 3.28 in
Finish Gloss
Width 1.61 in
Size 3.3 in
Color Black
Voltage 480 Volt
Type Single Receptacles
Material Nylon
Conductor Size 4 AWG
Applications Industrial Spec Grade
Mounting Type Flush
Depth 1.19 in
Grade Industrial/Specifica
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA L1620
Certifications CULUS
Amperage 20 Amp
Blade Dimensions 3.3 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Turnlok
UPC 78500716205
