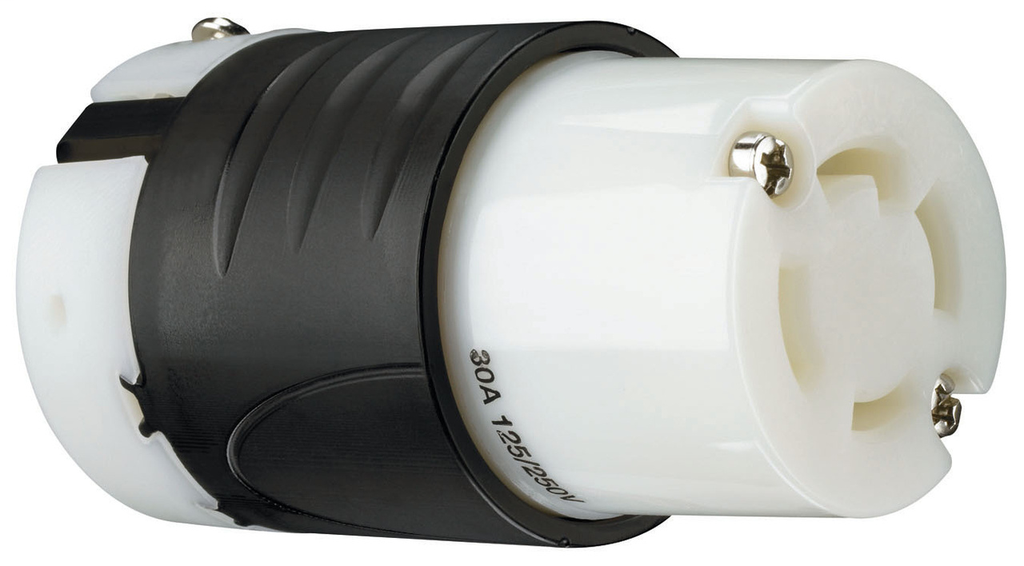

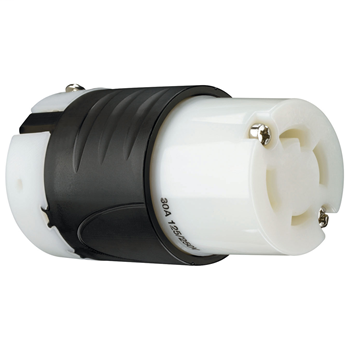

Pass & Seymour L1430-C 30 Amp 125/250 VAC 3-Pole 4-Wire L14-30R Black and White Nylon Locking Connector
Product image thumbnail 0
Product image thumbnail 1
$56.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L1430C
QED Part # 121518
Connectors

Features

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

  • Amperage: 30 A
  • Wire Size: 4
  • Standard: UL 498
  • NEMA Rating: L14-30R
  • Voltage: 125.0 V
  • Number of Wires: 3.0
  • Application Sector: Industrial
  • Number of Poles: Double Pole
  • Special Features: Locking Device, impact resistant
  • Certifications: FEDSPEC,CULUS
  • Color: Black
  • Country Of Origin: MX
  • Product Line: Pass & Seymour

Certifications

  • cULus Listed: 146159
  • Federal Spec Listed: WC596

Overview

GTiN 00785007143010
Length 3.3 Inch
Size 3.3 in
Color Black and White
Voltage 125 Volt
Type Female
Diameter 2.20 in
Material Nylon
Number of Conductors 4
Conductor Size 4 AWG
Applications Industrial Spec Grade
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA L14-30R
Certifications CULUS,FEDSPEC
Number of Ports 2
Amperage 30 Amp
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121403
Sub Brand Turnlok
UPC 78500714301
