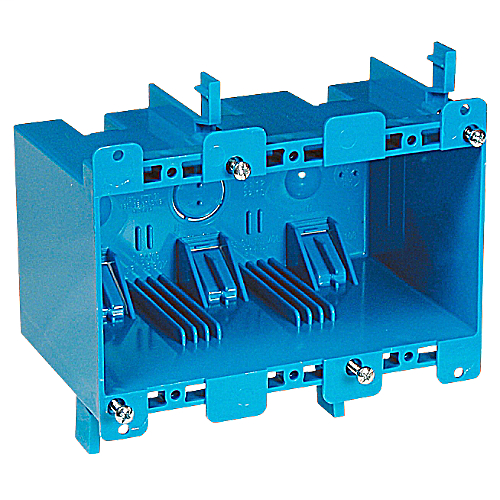

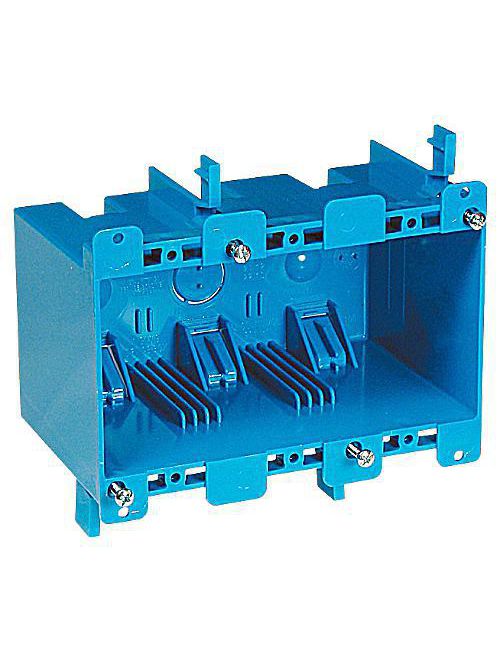

Carlon B355R 3-Gang 55 cu.in. Old Work Box
Product image thumbnail 0
Product image thumbnail 1
$870.95/c (100 ea)
In Stock | 200 available at 8 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Thomas & Betts
Mfg Catalog # B355R
QED Part # 1148294
Non-Metallic Outlet/Switch Boxes

Specifications

North American Specifications (UNSPSC)

  • UNSPSC: 39121308 Outlet box
  • IGCC: 4433 Outlet box
  • Brand Name: Carlon
  • Type: Outlet Boxes
  • Special Features: PVC construction for easier installation, greater performance and lower installation cost
  • Application: Designed and listed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electrical Code
  • Standard: UL E11461
  • Material: PVC
  • Color: Blue
  • Cubic Capacity: 55 Cubic Inches

European Specifications (ETIM)

  • ETIM: EC002601 Box/housing for built-in mounting in the wall/ceiling
  • Mounting method: Other
  • Shape: Rectangular
  • Construction type: Device connection box (round/square)
  • Equipped with: None
  • Length: 145.288mm
  • Width: 70.866mm
  • Depth: 93.726-93.726mm
  • Mounting switching equipment: Screwing
  • With screws: N
  • Pipe locking: N
  • Pipe locking optional: N
  • Inlet from the rear: N
  • Material: Plastic
  • Colour: Blue
  • Cover: None
  • Cover attachment: Not applicable
  • Sealable: N

Packaging

  • Outer Quantity: 6
  • Outer Dimensions (inches): 12.7x6.2x8.2
  • Weight Uom: 41 lbs. per 100

Categories

Overview

Long Description Three-Gang Old Work Outlet Box, Volume 55 Cubic Inches, Length 5.72 Inches, Width 2.79 Inches, Depth 3.69 Inches, Color Blue, Material PVC, Mounting Means Mounting Ears and Two Swing Clamps
GTiN 00034481145561
Color Blue
Type Outlet Boxes
Material PVC,Plastic
Applications Designed and listed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electrical Code
Family Brand Name Carlon
Length 145.288 mm
Width 70.866 mm
Depth 93.726-93.726 mm
Construction Type Device Connection Box (round/square)
Shape Rectangle
Box Quantity 6
UPC 03448114556
