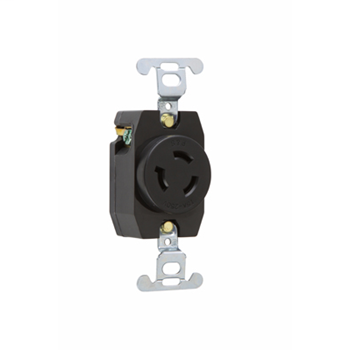

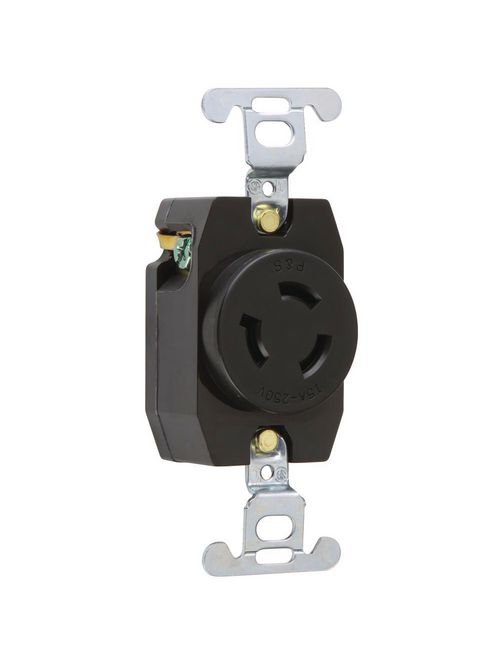

Pass & Seymour 4560 15 Amp 250 VAC 2-Pole 3-Wire NEMA L6-15R Nylon Locking Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
$23.67/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 4560
QED Part # 121555
Single

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

  • Phase: 3
  • Country Of Origin: MX
  • Certifications: UL,FEDSPEC,CSA
  • Amperage: 15 A
  • Standard: UL 498
  • NEMA Rating: L6-15R
  • Product Line: Pass & Seymour
  • Voltage: 250.0 V
  • Wire Size: 0-18Awg
  • Number of Wires: 3.0
  • Application Sector: Industrial
  • Number of Poles: Double Pole
  • Special Features: Chemical-impact resistant, color coded terminal screws

Certifications

  • CSA Listed: NO
  • Federal Spec Listed: NO
  • UL Listed: 135325

Overview

Long Description Receptacle Single 15amp 250volt Turnlok
GTiN 00785007456004
Finish Gloss
Size 3.3"
Color Black
Voltage 250 Volt
Type Single Receptacles
Diameter 1.375 in
Material Thermoplastic
Conductor Size 0-18 AWG
Applications Industrial
Mounting Type Flush
Depth .922 in
Height 3.281 in
Grade Industrial
Country of Origin Mexico
Wire Size 18-0 AWG
Family Brand Name Pass & Seymour
NEMA L6-15R
Certifications CSA,FEDSPEC,UL
Amperage 15 Amp
Blade Dimensions 3.3 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Turnlok
UPC 78500745600
Number of Phases 3 Phase
