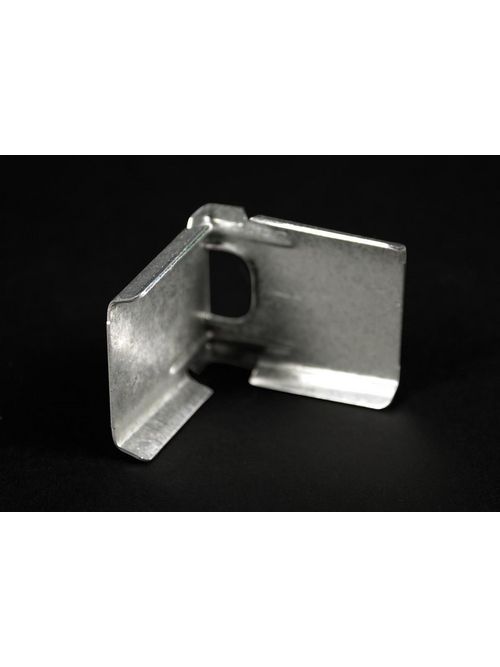

Wiremold 2017TC 1-1/2" Steel Internal Corner Coupling
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.54/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # 2017TC
QED Part # 136249
Fittings & Accessories

Specifications

  • Standard: cULus Listed Base & Blank Cover: File E4376 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E41751 Guide RJPR. Base & Blank Cover & Plugmold Series w/Snapicoil Haarness: Meets Article 386 of NEC. Meets Section 12-3032 of CEC. cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Black Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC.
  • Country Of Origin: US
  • Type: Plugmold
  • Certifications: CULUS,NAFTA,ROHS
  • Amperage: 15A A
  • Product Line: Wiremold
  • Voltage: 125.0 V
  • Application Sector: Commercial
  • Environmental Conditions: Dry interior locations
  • Special Features: Steel Raceway, Compact low profile design, Full range of fittings, one and two - gang device boxes.

Certifications

  • cULus Listed: E41751
  • NAFTA Compliant
  • RoHS Compliant

Overview

Long Description Can be used as inside corner coupling or as coupling and straight thru fitting. Furnished with one fiber bushing.
GTiN 00786776090772
Length 1-1/2 in
Type Plugmold
Material Steel
Product Series 2000
Applications Commercial, Office, Residential
Country of Origin USA
Capacity Single-Channel
Family Brand Name Wiremold
Certifications CULUS,NAFTA,ROHS
Blade Dimensions 1-1/2 in L x 38 mm H
Enclosure Steel
Used With Multi-Outlet Power Plugmold 2000 Series Raceway
Sub Brand Wiremold
Voltage 125 Volt
Amperage 15 Amp
UPC 78677609077
