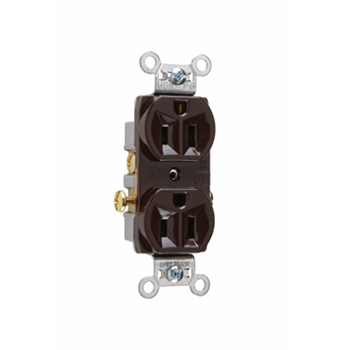

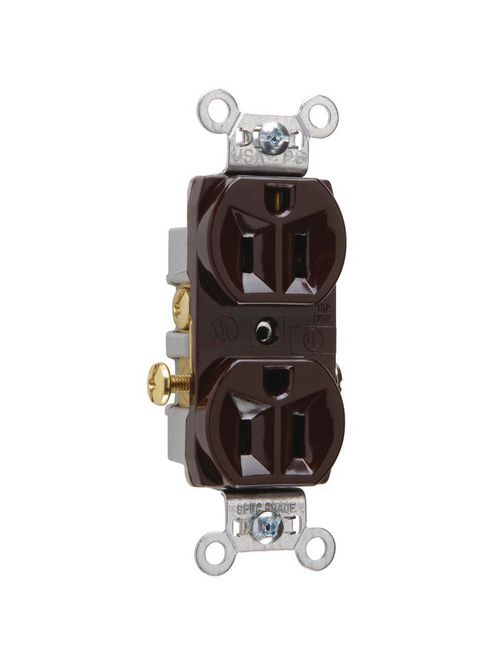

Pass & Seymour CR15 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Brown Nylon Face Corrosion-Resistant Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.94/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # CR15
QED Part # 121558
Duplex

Features

  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
  • Country Of Origin: MX
  • Amperage: 15 A
  • Certifications: CULUS
  • Color: Brown
  • NEMA Rating: 5-15R
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Number of Wires: 3.0
  • Wire Size: #14 - #10
  • Connection: Side wire
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Standard: UL498, CSA C22.2 No. 42
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 1500V minimum
  • Special Features: Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.

Certifications

  • cULus Listed: 140596

Overview

Long Description Commercial Spec Grade Duplex Receptacle, Side Wire 15amp 125volt, Gray
GTiN 00785007119022
Finish Untreated, Gloss
Width 1.322 in
Size 1.322 L x .780 W x 3.281 H In
Color Brown
Voltage 125 Volt
Type Receptacles
Material Nylon
Conductor Size 14-10 AWG
Applications Commercial
Mounting Type Wall, Flush
Depth 0.78 in
Height 3.281 in
Grade Commercial
Country of Origin Mexico
Wire Size 14-10 AWG
Capacity Duplex
Connection Type Side Wire
Temperature Rating -40 to 50 C
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Side wire
Amperage 15 Amp
Dielectric Strength 1500 V
Blade Dimensions 33.58 mm W x 19.81 mm D x 83.31 mm H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
UPC 78500711902
NEMA 5-15R
