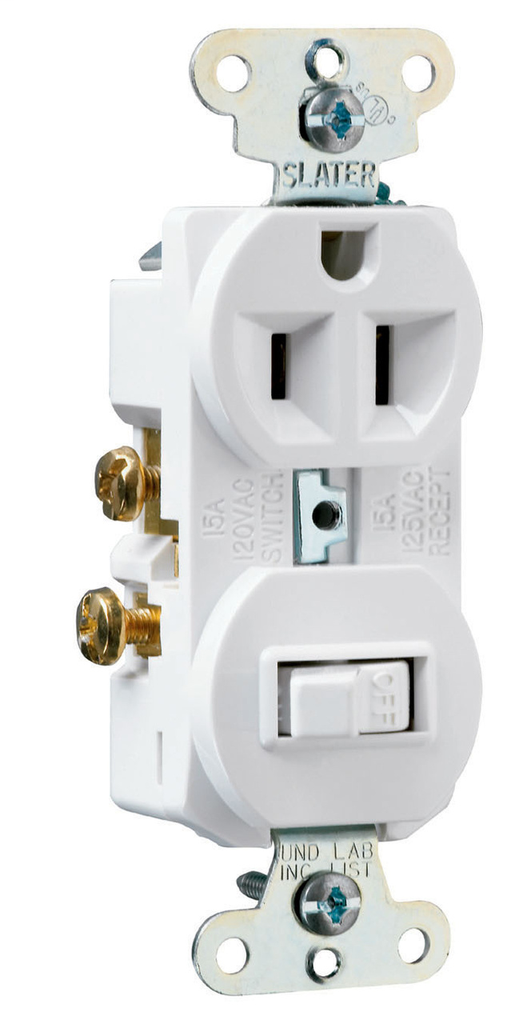

Pass & Seymour 691-W 15 Amp 120/125 VAC NEMA 5-15R White Combination 1-Pole Switch/Single Receptacle
$1,028.99/c (100 ea)
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 691-W
QED Part # 119455
Switch & Receptacle

Features

  • Easily accessible break-off separate or common feed.
  • Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
  • Side wire #12 and #14 AWG.
  • Two devices fit into the space of one.
  • Grounding combination devices meet NEC Requirements.
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.

Specifications

General Info

  • Color: White
  • Type: Standard
  • Number Of Poles: 1

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • UL Listing No: 20, 498
  • UL Standard: Yes
  • UN SPSC: 39121406

Dimensions

  • Depth (US): .94"
  • Height (US): 3.28"
  • Width (US): 1.32"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: 5-15R
  • NEMA Rating: Yes
  • Volts: 120/125

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Our standard Pass & Seymour combination switches allow you to add lights to any room in your home without having to add or replace wall boxes.
GTiN 00785007691023
Width 1.32 in
Size 3.3 in
Color White
Voltage 120 Volt
Type Halogen-Free
Material Thermoplastic
Conductor Size 4 AWG
Applications For Residential/Commercial Application
Mounting Type Wall, Flush
Depth .94 in
Height 3.28 in
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA 5-15R
Certifications CULUS
TC Connection Grounding
Amperage 15 Amp
Number of Poles 1 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
