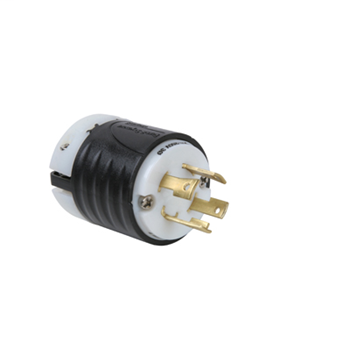

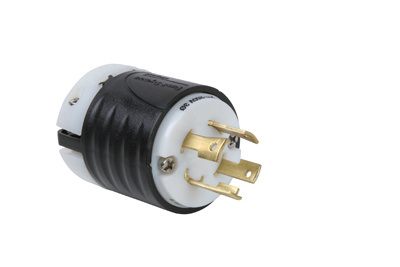

Pass & Seymour L1530-P 30 Amp 250 VAC 3-Phase 3-Pole 4-Wire NEMA L15-30P Black and White Nylon Straight Locking Plug
$28.49/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L1530P
QED Part # 121524
LOCKING DEVICE PLUG
PLUG-QED-121524

Overview

UPC 78500715304
Long Description Turnlok Plug 4wire 3
GTiN 00785007153040
Length 3.75 in
Size 3.8 in
Color White,Black
Voltage 250 Volt
Type Plug
Diameter 2.20 in
Material Nylon
Conductor Size 4 AWG
Applications Industrial Spec Grade
Country of Origin Mexico
Wire Size 4
Family Brand Name Pass & Seymour
NEMA L1530
Certifications FEDSPEC,CULUS
Amperage 30 Amp
Blade Dimensions 3.8 in
Number of Poles 2
Number of Wires 4
UNSPSC 39121403
Sub Brand Pass & Seymour
