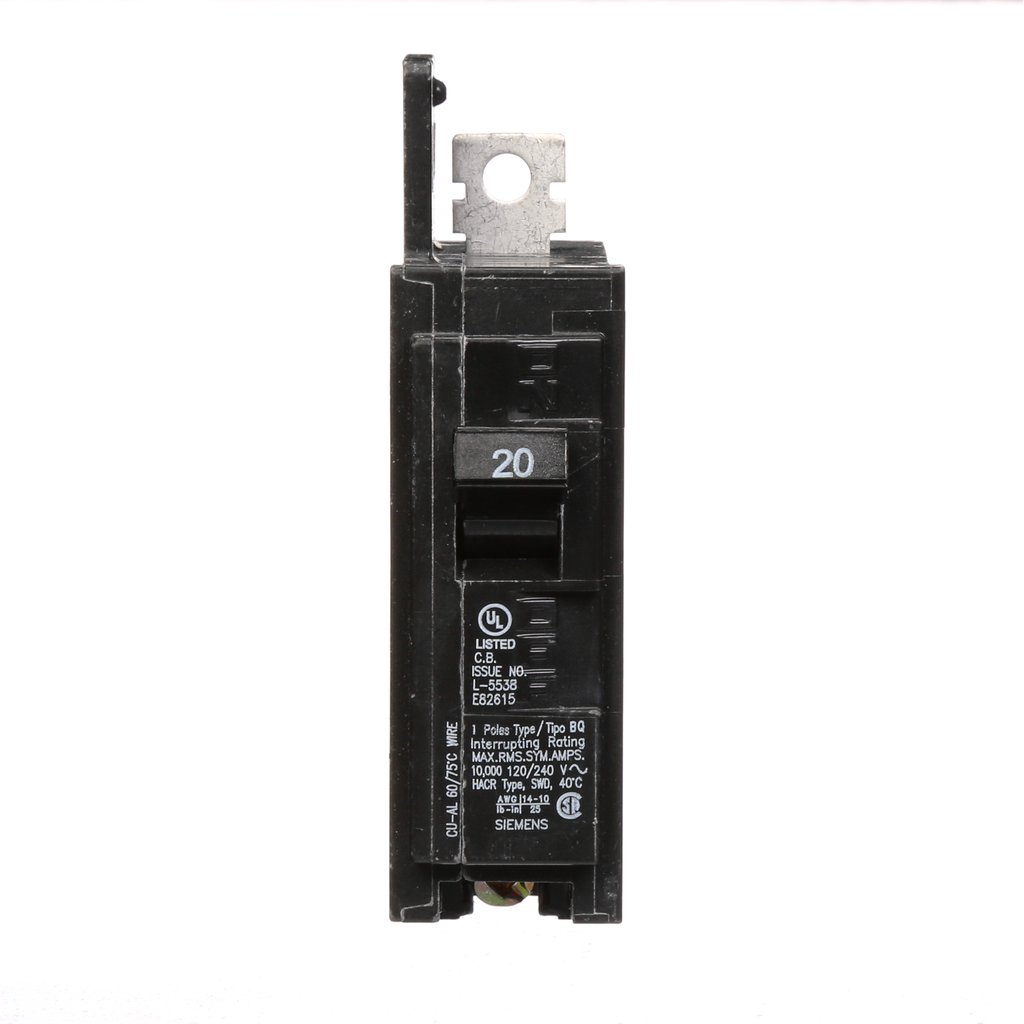

Siemens BQ1B020 1-Pole 20 Amp 120 Volt 10 K Circuit Breaker

$41.79/ea

In Stock | 3 available at 2 locations

Adding...

Already a Customer? Log in to view your pricing

Molded Case Circuit Breakers

Features

Standard: UL LISTED / CSA / NOM CERTIFIED
Continuous current rated value: 20 A
Voltage between phase and Ground (GND) rated value: 120 V
Supply voltage frequency rated value 50/60 Hz: TRUE
Suitability for operation: ELECTRICAL DISTRIBUTION
Number of poles: 1
Design of the product: BQ
Size of the circuit-breaker: BQ (125A)
Design of the overload release: THERMAL - MAGNETIC
Height [in]: 3.75 in
Width [in]: 1 in
Depth [in]: 3 in
Product feature: 10kA INTERRUPT
Type of electrical connection: MECHANICAL LUGS
Product brand name: SIEMENS
Type of connectable conductor cross-sections at AWG conductors for load-side outgoing feeder single or multi-stranded: 14 - 10AWG (CU) / 12 - 10AWG (AL)
Type of mounting panel: OEM PANELS

Family Brand Name	Siemens
Long Description	Molded case circuit bolt-on breakers for loadcenter mounting with insta-wire in 2 types of tripping speed BQ=10KA, BQH=22KA. Available in versions 1 pole 120vac, 2 poles common trip 240vac and 3 poles common trip 240vac.
GTiN	00783643102323
Length	12.9 in
Width	1 in
Operating Temperature	N/A
Voltage	120 Volt
Type	BQ
Applications	Electrical Distribution
Depth	3 in
Height	3.75 in
Connection Type	Bolt-On
Frame	N/A
TC Connection	BOLT-ON
Actuator	Switch Position Knob
Blade Dimensions	12.9 in L x 4.6 in W x 3.8 in H
Trip Type	Thermal Magnetic
Number of Poles	1 Pole
Load Rating	N/A
Interrupt Rating	10 kA
Enclosure	N/A
Trip Range	Thermal Magnetic
Sub Brand	N/A
