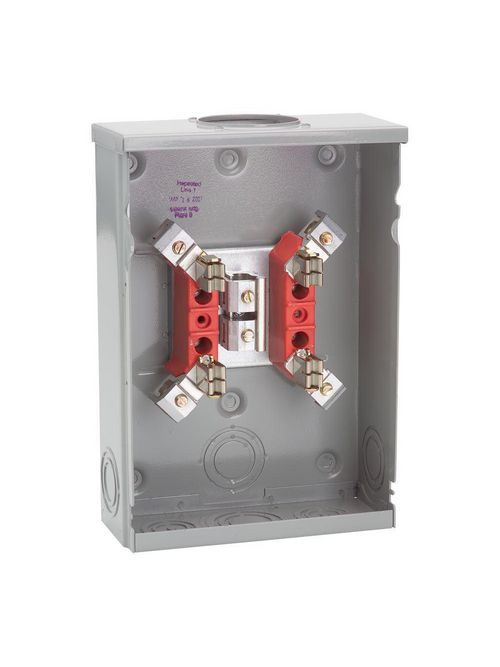

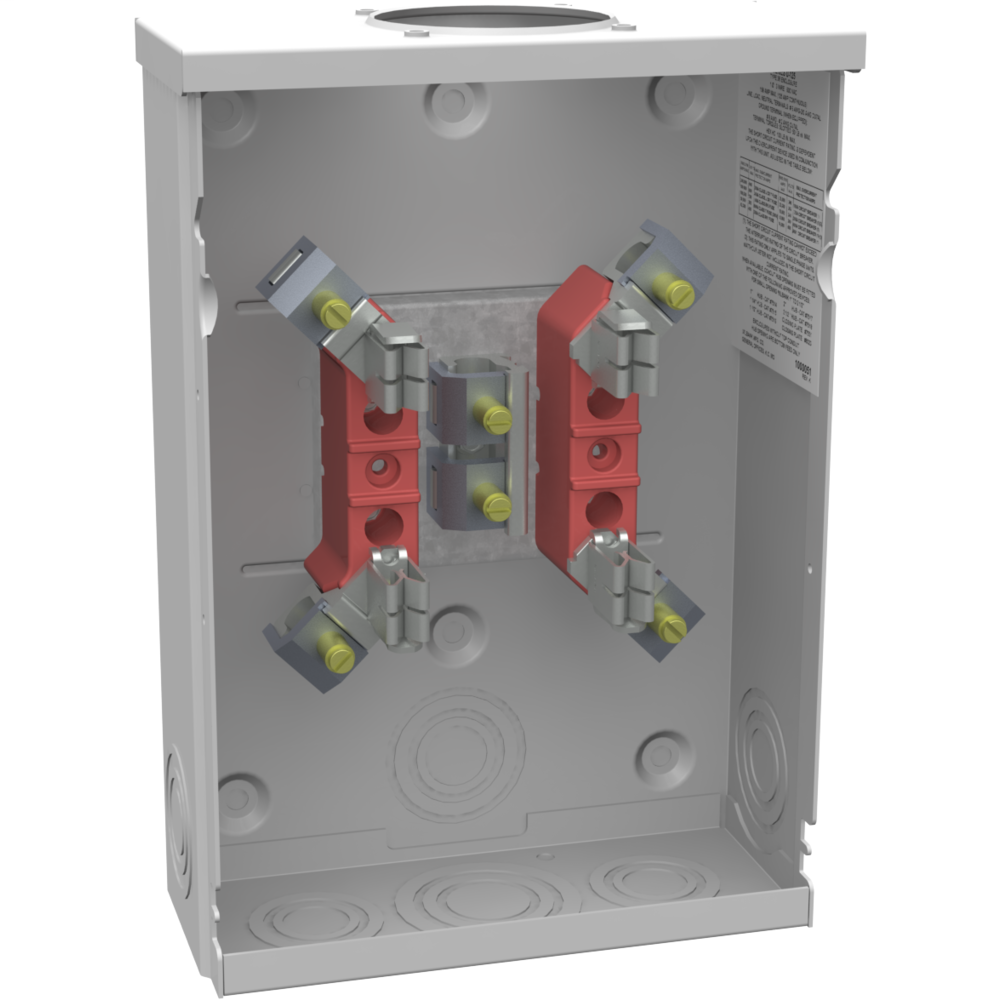

Milbank U7490-RL 600 VAC 125 Amp 4-Terminal 1-Phase 1-Position Ring Type Overhead/Underground Meter Socket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U7490-RL
QED Part # 12057
Single Position Sockets

Specifications

  • Brand Name: Milbank
  • Type: Ring Type Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 600 Volts Alternating Current
  • Amperage Rating: 125 Continuous Ampere
  • Phase: 1 Phase
  • Frequency Rating: 60 Hertz
  • Size: 3.313L x 8W x11.5H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 4 Terminal
  • Bypass Provision: No Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Triplex Ground
  • Hub/Closing Plate: Small Hub Opening
  • Line Side Wire Range: 6 - 2/0 AWG
  • Load Side Wire Range: 6 - 2/0 AWG
  • Number of Receptacles: 0
  • Height: 11.5 IN
  • Length: 3.313 IN
  • Width: 8 IN
  • UNSPSC Number: 39121102
  • Product Family Code: 4T12
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Categories

Overview

Long Description 4 TERM RNGTP SML HUB OPEN
GTiN 00784572141476
Length 3.313 in
Width 8 in
Size 3.313L x 8W x 11.5H
Voltage 600 Volt
Type Ring Type Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Lay In
Applications Meter Socket
Mounting Type Surface Mount
Height 11.5 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 1 Phase
Number of Terminations 4
Amperage 125 Amp
Hub Style Small Hub Opening
Cable Entry Overhead Or Underground
Enclosure Type 3R,G90 Galvaniz
UPC 78457214147
