Pass & Seymour S3-54-RAC 3-31/32 x 5-25/32 x 3" 54" 3-Gang Thermoplastic Switch and Outlet Box
$377.99/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # S3-54-RAC
QED Part # 119422
Gang Boxes

Features

  • Quick/Click feature secures devices quickly and easily.
  • Does not strip when over-torqued.
  • 6¬†Auto/Clamps on each end eliminate the need for separate cable clamps.

Specifications

General Info

  • Product Series: Slater
  • Type: Box
  • Special Features: Quick/Click, Auto Clamps

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • Federal Spec: No
  • UL Standard: Yes
  • UN SPSC: 39121308

Dimensions

  • Depth (US): 3.0"
  • Height (US): 3.96875"
  • Width (US): 5.78125"

Technical Information

  • Material: Plastic
  • Mounting: Captive Mounting Nails
  • NEMA Configuration Number: OS2

Buy American Act Compliance

  • Country Of Origin: UNITED STATES OF AMERICA
  • Buy American Act Status: Buy American Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

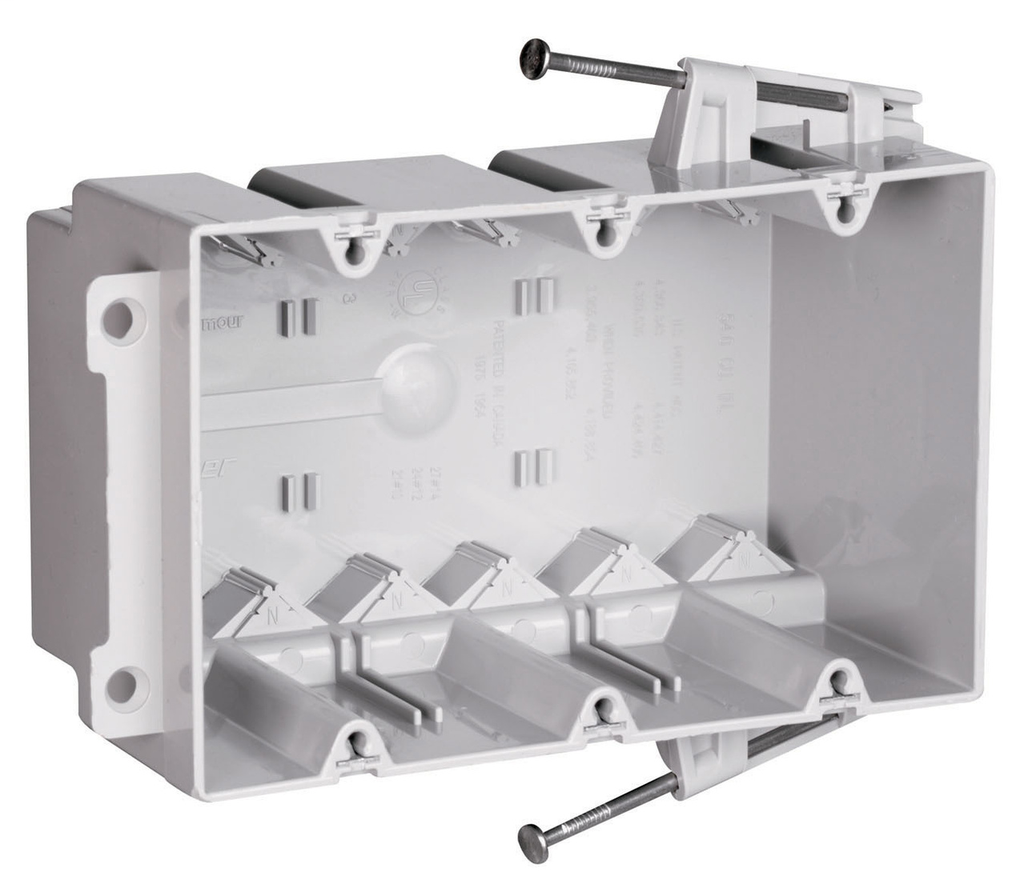

Long Description Triple Gang Switch and Outlet Box with captive mounting nails on each end.  It has six Auto/Clamps each end with Quick/Click entries.  It is easy to install with a rectangular cutout. It is made with a durable, impact-resistant thermoplastic box. It has innovative extras that help cut installation time. 50 pack.
GTiN 00785007207408
Width 5.781 in
Size 3.75 x 2.25 x 2.87
Color Gray
Type Box
Material Plastic
Product Series Slater
Applications Wall Box
Mounting Type Captive Mounting Nai
Depth 3.0 in
Height 3.968 in
Country of Origin USA
Family Brand Name Pass & Seymour
Construction Thermoplastic
NEMA OS2
Certifications UL
Buy American Compliant Yes
Cable Entry No
UNSPSC 39121308
Sub Brand Pass & Seymour
UPC 78500720740
