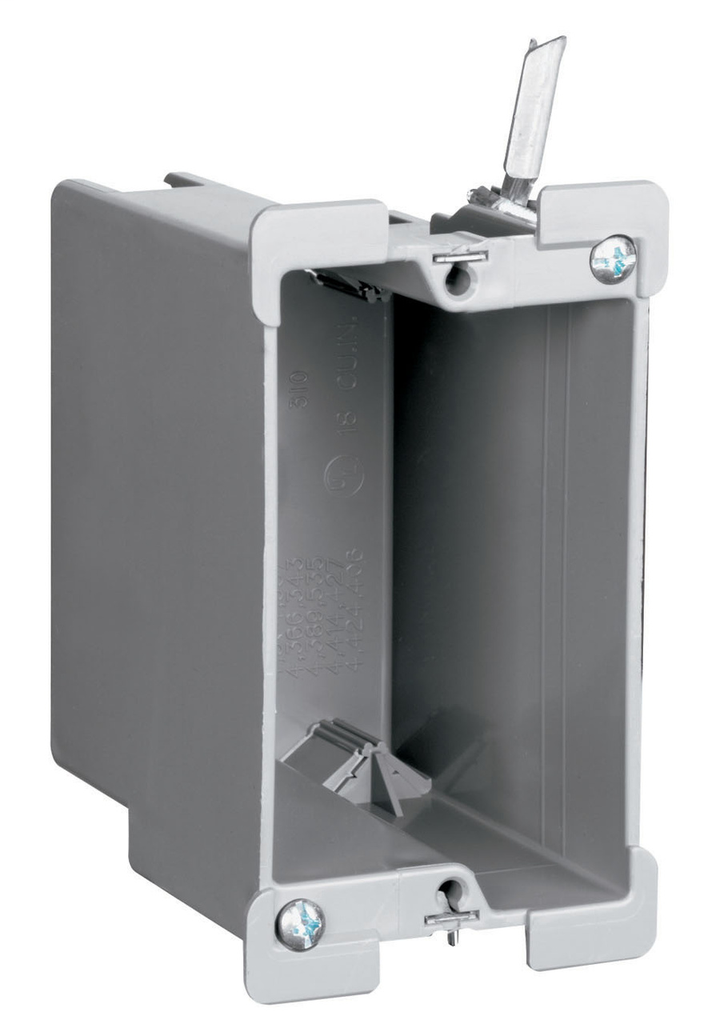

Pass & Seymour S1-18-W 3-3/4 x 2-1/4 x 3-1/32" 18" 1-Gang Thermoplastic Switch and Outlet Box
$262.99/c (100 ea)
In Stock | 812 available at 4 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # S1-18-W
QED Part # 119721
Metallic Outlet/Switch Boxes

Features

  • Quick/Click feature secures devices quickly and easily.
  • Does not strip when over-torqued.
  • 2 Auto/Clamps on each end eliminate the need for separate cable clamps.
  • Metal swing bracket for quick mounting in existing walls.
  • Swing bracket adjusts from 1 1/4 inch to 1/8 inch.

Specifications

General Info

  • Product Series: Slater
  • Type: Switch, Outlet Box
  • Special Features: Old Work, Quick/Click

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • Federal Spec: No
  • UL Standard: Yes
  • UN SPSC: 39121308

Dimensions

  • Depth (US): 3.03125"
  • Height (US): 3.75"
  • Width (US): 2.25"

Technical Information

  • Material: Plastic
  • NEMA Configuration Number: OS2

Buy American Act Compliance

  • Country Of Origin: UNITED STATES OF AMERICA
  • Buy American Act Status: Buy American Act Compliant

Eco-Benefit Information

  • RoHS Compliant
> View Substitutes (1)

Overview

Long Description Durable, impact-resistant thermoplastic box complemented by innovative extras that cut installation time. Single Gang, Old Work Switch and Outlet Box with Swing-Bracket for mounting.  Adjusts from 1 1/4" down to 1/8".  Two Auto/Clamps on Each End.  100 pack.
GTiN 00785007207019
Width 2-1/4 in
Size 3.75 x 2.25 x 2.71
Color Gray
Type 1-Outlet
Material Thermoplastic
Product Series Slater
Applications Wall Box
Depth 2.71 in
Height 3.75 in
Country of Origin USA
Family Brand Name Pass & Seymour
Construction Thermoplastic
NEMA OS2
Certifications CULUS
Buy American Compliant Yes
Cable Entry No
UNSPSC 39121308
Sub Brand Pass & Seymour
Length 3-3/4 in
Mounting Type Wall
Number of Gangs 1 Gang
