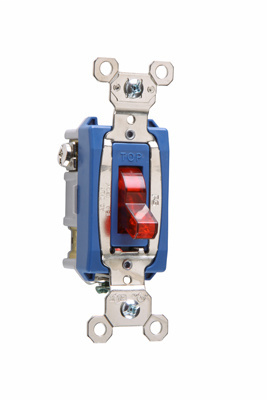

Pass & Seymour PS15AC1-RPL 15 Amp 120 VAC 1-Pole Red Glass Reinforced Nylon Screw Mounting Pilot Lighted Toggle Switch
$31.99/e (1 ea)
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # PS15AC1-RPL
QED Part # 119356
Pilot Lighted Toggle Switches

Features

  • One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
  • Impact- and chemical-resistant cover.
  • Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
  • One-piece nickel-plated brass strap for superior corrosion-resistance.
  • Auto-ground clip assures positive ground.
  • Cam control and spring actuator for positive "makes and breaks."
  • Heavy-duty bumpers for quiet, smooth operation.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver-alloy contacts for long life and better heat dissipation.
  • Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
  • Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
  • Grounding terminal is standard with screw-pressure plate back wire.
  • Shallow design for easier installation.
  • This switch is compatible with incandescent loads only and is not recommended for use with LED or CFL lamps.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Red
  • Type: Pilot Lighted
  • Duty: Extra Heavy Duty
  • Number Of Poles: 1

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 111
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 20
  • UL Standard: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.073"
  • Height (US): 3.281"
  • Width (US): 1.320"

Technical Information

  • Amps: 15A
  • Volts: 120VAC
  • Volts (AC): 120
  • Grade Type: Industrial

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500719580
Long Description 1pole Pilot Lighted Switch, Back & Side Wire, 15amp 120volt, Red
GTiN 00785007195804
Width 1.320 in
Size 3.3"
Color Brown
Voltage 120 Volt
Type Pilot Lighted
Material Thermoplastic
Applications Commercial, Residential
Depth 1.073 in
Height 3.281 in
Grade Industrial
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications FEDSPEC,CULUS
Actuator Toggle
Duty Rating Extra Heavy Duty
Amperage 15 Amp
Blade Dimensions 3.3 in
Contact Rating 20Amp, 120/277V
Number of Poles 1 Pole
Action Off
UNSPSC 39121507
Sub Brand Decora
