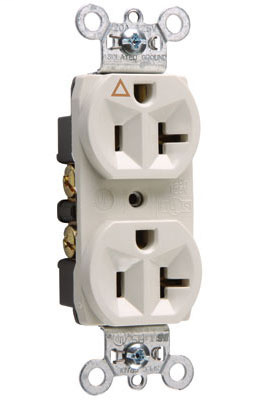

Pass & Seymour IG5362-W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Face Duplex Isolated Ground Receptacle
Product image thumbnail 0
Product image thumbnail 1
$8.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # IG5362W
QED Part # 119397
Duplex

Features

  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
  • High-impact resistant nylon face resists impacts and scrapes.
  • Corrosion-resistant plated steel strap.
  • Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Special Features: IG symbol and Isolated Ground markings for easy identification and circuit delineation. Triple-wipe brass contacts ensure lasting, positive contact with plug blades. High-impact resistant nylon face resists impacts and scrapes. Corrosion-resistant plated steel strap. Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire. Auto-ground clip assures positive ground.
  • Certifications: FEDSPEC,CULUS
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Amperage: 20 A
  • Color: White
  • Product Line: Pass & Seymour
  • NEMA Rating: 5-20R
  • Voltage: 125.0 V
  • Number of Wires: 3.0
  • Wire Size: #14 - #10
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Standard: UL498, CSA C22.2 No. 42
  • Connection: Back and side wire
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum

Certifications

  • cULus Listed: 140596
  • Federal Spec Listed

Overview

UPC 78500704538
Long Description Isolated Ground Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Gray
GTiN 00785007045383
Width 1.322 in
Size 1.322 L x .922 W x 3.281 H In
Color White
Voltage 125 Volt
Type Isolated Ground, Heavy Duty
Material Nylon
Conductor Size 14-10 AWG
Applications Commercial Grade
Mounting Type Wall
Depth 0.922 in
Height 3.281 in
Grade Commercial/Specification
Country of Origin Mexico
Style Duplex
Wire Size 14-10 AWG
Capacity Duplex
Connection Type Back and Side Wire
Temperature Rating -40 to 60 C
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS,FEDSPEC
TC Connection Back and side wire
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.322 in L x 0.922 in W x 3.281 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
