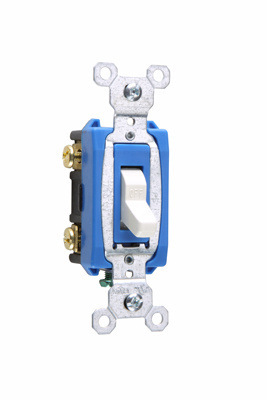

Pass & Seymour CSB15AC2-W 15 Amp 120/277 VAC 2-Pole White Glass Reinforced Nylon Screw Mounting Toggle Switch
$9.49/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # CSB15AC2-W
QED Part # 119607
Commercial Grade

Features

  • One-piece brass alloy contact arm for reliable electrical performance.
  • One-piece steel strap with integral ground is plated for corrosion resistance.
  • High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
  • Heavy-duty toggle bumpers for smooth and quiet operation.
  • Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
  • Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
  • Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
  • Oversized silver alloy contacts for longer dependable switch life.
  • Tri-drive terminal and mounting screws.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: White
  • Duty: Hard Use
  • Number Of Poles: 2

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 111
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 20
  • UL Standard: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.073"
  • Height (US): 3.281"
  • Width (US): 1.320"

Technical Information

  • Amps: 15A
  • Volts: 120/277VAC
  • Volts (AC): 120/277
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500712614
Long Description Construction 2pole Switch, Back & Side Wire, 15amp 120/277volt, White.
GTiN 00785007126143
Width 1.320 in
Size 3.3"
Color White
Voltage 277 Volt
Type Switch
Material Thermoplastic
Applications Commercial
Depth 1.073 in
Height 3.281 in
Grade Commercial
Country of Origin Mexico
Wattage 2 Watt
Family Brand Name Pass & Seymour
Certifications FEDSPEC,CULUS
Actuator Toggle, Rocker/Button
Duty Rating Hard Use
Amperage 15 Amp
Blade Dimensions 3.3 in
Contact Rating 15amp, 120/277vac
Number of Poles 2 Pole
UNSPSC 39121507
Sub Brand Pass & Seymour
