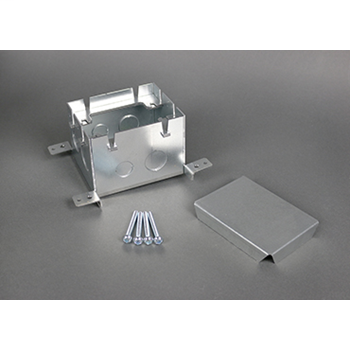

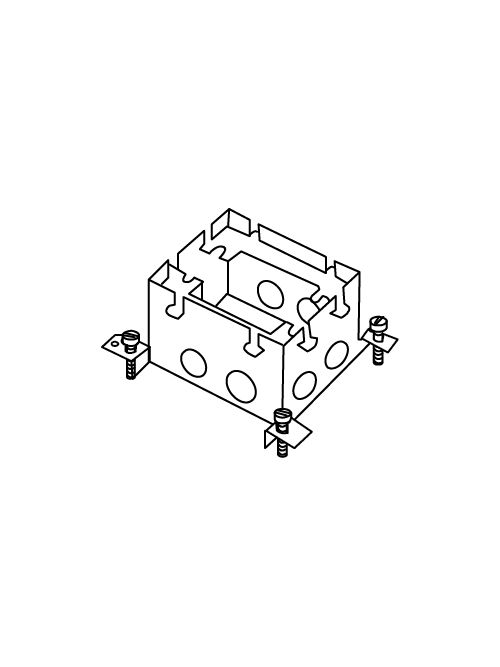

Wiremold 880S1 1/2 x 3/4 x 1" 53" 1-Gang Stamped Steel Floor Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$74.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # 880S1
QED Part # 131131
Floor Boxes

Features

  • TopGuard protection. All cover assemblies for the Omnibox Floor Box Series have TopGuard protection. An integral design which keeps out water, dirt, and debris from the power and communication compartments.
  • Fully adjustable box. Before and after concrete pour adjustability. Lower installed cost.
  • Concrete-tight stamped steel construction. Lower cost option for above grade applications.
  • Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A, 514C, 514D, and Canadian standard C22.2.
  • Flush activation assemblies for carpet and tile. Aesthetically pleasing assemblies are interchangeable for both cast-iron and stamped steel.
  • Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-of-use. A wide selection of data and bezel options available for use with Ortronics TracJack and Series II devices.

Specifications

  • Product Depth: 7.0 in
  • Special Features: Available in one-, two-, and three-gang configurations. More configurations to support multiservice applications. Single service boxes. Accommodates power, communication and/or audio/video devices which reduces the need for multiple boxes.
  • Product Height: 3.5 in
  • Type: Floor Box
  • Product Width: 5.5 in
  • Construction: Assembled
  • Number of Knockouts: 2
  • Product Volume: 134.75 cu in
  • Product Weight: 2.45 lb
  • Number of Outlets: 0.0
  • Cable Entry: Knockouts in
  • Country Of Origin: MX
  • Certifications: NAFTA,CULUS,ROHS
  • Cubic Capacity: 53.0 cu in
  • Application Sector: Commercial
  • Color: Silver
  • Standard: cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. Meets Article 314.27(C) of NEC.
  • Product Line: Wiremold

Certifications

  • NAFTA Compliant
  • cULus Listed: E2961
  • RoHS Compliant

Overview

Long Description The 880S1 single gang Omnibox Floor Box provides an excellent activation solution for applications where single service is required in open space areas. The 880S1 floor box is offered in a stamped steel construction, designed to be installed in above grade concrete floor applications and to meet a wide range of market requirements. This floor box series has many applications, some of which are schools, financial institutions, and commercial office buildings.
GTiN 00786564221760
Length 4-13/16 in
Width 3-23/32 in
Size 4 13/16" x 3 23/32" x 3 15/32"
Color Silver
Type Deep
Material Steel
Product Series Omnibox
Applications Commercial, Office
Mounting Type In Concrete
Depth 3-15/32 in
Country of Origin Mexico
Family Brand Name Wiremold
Construction Assembled
Certifications CULUS,NAFTA,ROHS
Number of Gangs 1 Gang
Cable Entry Through Floor
Sub Brand Wiremold
Height 3.5 in
Weight 2.45 lb
Number of Outlets 0.0
UPC 78656422176
