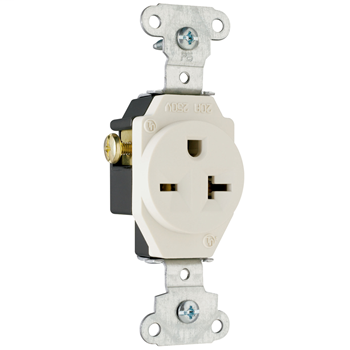

Pass & Seymour 5851-LA 20 Amp 250 VAC 2-Pole 3-Wire NEMA 6-20R Light Almond Heavy Duty Single Receptacle
$9.09/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 5851LA
QED Part # 120345
Single

Features

  • Auto-ground clip assures positive ground.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Country Of Origin: MX
  • Amperage: 20 A
  • Certifications: CULUS
  • NEMA Rating: 6-20R
  • Product Line: Pass & Seymour
  • Voltage: 250.0 V
  • Number of Wires: 3.0
  • Wire Size: #14 - #10
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Standard: UL498, CSA C22.2 No. 42
  • Connection: Back and side wire
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum
  • Special Features: Auto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. One-piece brass triple-wire power contacts for lasting retention.

Certifications

  • cULus Listed: 140596

Overview

Long Description Heavy-Duty Spec Grade Single Receptacle, Side Wire 20amp 250volt, White
GTiN 00785007585131
Finish Gloss
Width 1.380 in
Size 1.32 L x 1.08 W x 3.68 H In
Color Light Almond
Voltage 250 Volt
Type Heavy Duty
Material Nylon
Conductor Size 14 - 10 AWG
Applications Commercial, Heavy Duty
Mounting Type Wall, Flush, Screw
Depth 1.08 in
Height 3.28 in
Grade Commercial Specification
Country of Origin Mexico
Wire Size 14-10 AWG
Capacity Single
Connection Type Back and Side Wired
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Back and side wire
Duty Rating Heavy Duty
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.32 in L x 1.08 in W x 3.68 in H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
UPC 78500758513
NEMA 6-20R
