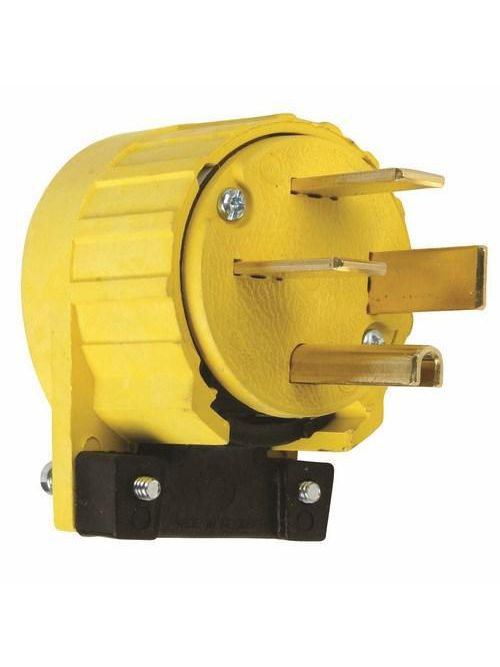

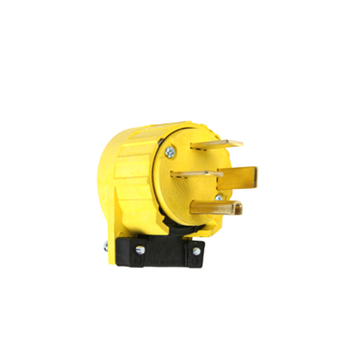

Pass & Seymour 5751-AN 50 Amp 250 VAC 3-Phase 3-Pole 4-Wire NEMA 15-50P Yellow Angled Straight Blade Power Plug
$130.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 5751-AN
QED Part # 119746
Plugs

Features

  • Quality Materials, durability, and time-tested design
  • Conforms to NEMA WD-1 and WD-6
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: Yellow
  • Type: Accessories

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 45
  • CSA Standard: Yes
  • CUL Listing No: No
  • cULus: No
  • cURus: No
  • Federal Spec: No
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121402
  • UR: No

Dimensions

  • Depth (US): 2.12"
  • Height (US): 3.43"
  • Width (US): 2.62"

Technical Information

  • Volts (AC): 250
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Plug 50amp 3phase 250volt Angle
GTiN 00785007575118
Width 2.62 in
Size 3.4 in
Color Yellow
Voltage 250 Volt
Type Power Outlet, Angled
Material Nylon
Conductor Size 4 AWG
Applications For Appliances
Depth 2.12 in
Height 3.43 in
Grade Specification
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Non Grounding
Blade Dimensions 3.4 in
Number of Poles 3 Pole
Number of Wires 4
UNSPSC 39121402
Sub Brand Pass & Seymour
