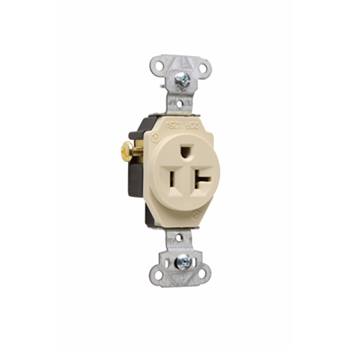

Pass & Seymour 5351-I 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Ivory Single Receptacle
$3.54/ea
In Stock | 5 available at 4 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 5351-I
QED Part # 119299
Single

Features

  • Auto-ground clip assures positive ground.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate side wire capability.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Ivory
  • Type: Single Receptacles
  • Duty: Heavy Duty
  • Special Features: Side Wire

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • Federal Spec: No
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406
  • UR: No

Dimensions

  • Depth (US): 1.08"
  • Height (US): 3.28"
  • Width (US): 1.32"

Technical Information

  • Amps: 20A
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Single
  • Grade Type: Federal Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Heavy-Duty Spec Grade Single Receptacle Side Wire 20amp 125volt Ivory
GTiN 00785007535112
Width 1.32 in
Size 3.3 in
Color Ivory
Voltage 125 Volt
Type Heavy Duty
Material Thermoplastic, Zinc Plated Steel
Applications For Residential and Commercial Use
Depth 1.08 in
Height 3.28 in
Grade Federal Specificatio
Country of Origin Mexico
Wire Size 4 AWG
Capacity Single
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Wire Ground
Duty Rating Heavy Duty
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
Finish Gloss
Conductor Size 4 AWG
Mounting Type Wall, Flush
Connection Type Side Wired
Blade Dimensions 3.3 in
