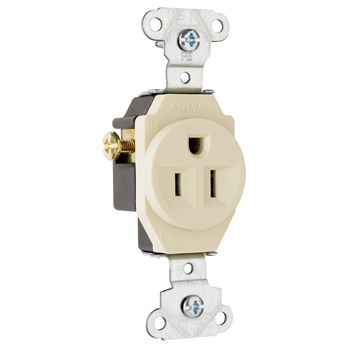

Pass & Seymour 5251-LA 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Light Almond Heavy Duty Straight Blade Single Receptacle
$2.54/e (1 ea)
In Stock | 8 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 5251-LA
QED Part # 120343
Single

Features

  • Auto-ground clip assures positive ground.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Light Almond
  • Type: Single Receptacles
  • Duty: Heavy Duty
  • Special Features: Side Wire

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • Federal Spec: No
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406
  • UR: No

Dimensions

  • Depth (US): 1.08"
  • Height (US): 3.28"
  • Width (US): 1.32"

Technical Information

  • Amps: 15A
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Single
  • Grade Type: Federal Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Heavy-Duty Spec Grade Single Receptacle, Side Wire 15amp 125volt, Light Almond
GTiN 00785007525120
Width 1.32 in
Size 3.3 in
Color Light Almond
Voltage 125 Volt
Type Single Receptacles
Material Thermoplastic
Conductor Size 4 AWG
Applications Residential/Commercial
Mounting Type Wall
Depth 1.08 in
Height 3.28 in
Grade Residential/Commerci
Country of Origin Mexico
Wire Size 4 AWG
Capacity Single
Connection Type Side Wired
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Wire Ground
Duty Rating Heavy Duty
Amperage 15 Amp
Blade Dimensions 3.3 in H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
UPC 78500752512
