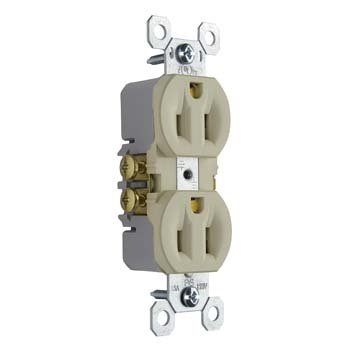

Pass & Seymour 3232-I 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Ivory Thermoplastic Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$90.99/c (100 ea)
In Stock | 3 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 3232-I
QED Part # 119425
Duplex

Features

  • Extra-long strap. Quickloop wire looping aid. Longer tri-drive screws for easier #12 AWG looping. Extra-large circuit break-off tabs.
  • Side-access push wire release. Side wire accepts #12 - #14 AWG solid wire. Push wire accepts #14 AWG solid only.
  • Low profile face. Traditional contoured face. (3232 models) Self-grounding models provide automatic ground clip.

Specifications

General Info

  • Color: Ivory
  • Type: Duplex
  • Number Of Poles: 2

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No.42
  • CSA Standard: Yes
  • cULus: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406

Dimensions

  • Depth (US): .960"
  • Height (US): 3.31"
  • Width (US): 1.32"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: 5-15R
  • NEMA Rating: Yes
  • Volts: 125
  • Volts (AC): 125

Buy American Act Compliance

  • Country Of Origin: CHINA
  • Buy American Act Status: No

Eco-Benefit Information

  • RoHS Compliant
  • LEED Contribution: Yes
> View Substitutes (1)

Overview

Long Description Our Pass & Seymour TradeMaster receptacles combine a traditional look with reliable, time-tested operation for any residential application.
GTiN 00785007323214
Finish Gloss
Width 1.32 in
Size 4.2 in
Color Ivory
Voltage 125 Volt
Type Straight Blade Receptacle
Material Thermoplastic
Conductor Size 4 AWG
Applications Residential/Commercial
Mounting Type Wall, Flush, Screw
Depth .960 in
Height 3.31 in
Country of Origin China
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA 5-15R
Certifications UL,CULUS
Buy American Compliant No
TC Connection Grounding
Amperage 15 Amp
Blade Dimensions 4.2 in H
Number of Poles 2 Pole
Number of Wires 3-Wire Grounding
Sub Brand Pass & Seymour
UPC 78500732321
