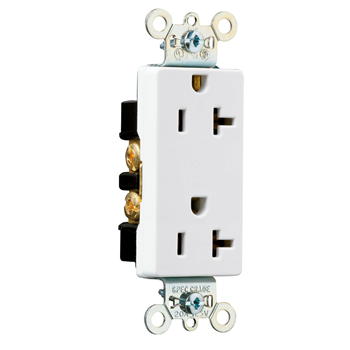

Pass & Seymour 26352-W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Face Heavy Duty Duplex Decorator Receptacle
$6.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 26352-W
QED Part # 119688
Duplex

Features

  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
  • All devices fit standard #26 opening wall plate.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: White
  • Type: Receptacles
  • Duty: Heavy Duty
  • Special Features: Back,Side Wire
  • Style: Decorator

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • cUL Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406

Dimensions

  • Depth (US): 0.833"
  • Height (US): 3.281"
  • Width (US): 1.322"

Technical Information

  • Amps: 20A
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500778540
Long Description Heavy-Duty Decorator Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt White
GTiN 00785007785401
Finish Decor, Gloss
Width 1.322 in
Size 3.8 in
Color White
Voltage 125 Volt
Type Decorator
Material Nylon
Conductor Size 4 AWG
Applications Residential/Commercial
Mounting Type Wall, Flush
Depth 0.833 in
Height 3.281 in
Grade Residential/Commerci
Country of Origin Mexico
Style Decorator
Wire Size 4 AWG
Capacity Duplex
Connection Type Wire Ground, Back and Side Wire
Family Brand Name Pass & Seymour
Certifications FEDSPEC,CULUS
TC Connection Wire Ground
Duty Rating Heavy Duty
Amperage 20 Amp
Blade Dimensions 33.58 mm W x 21.16 mm D x 83.34 mm H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
