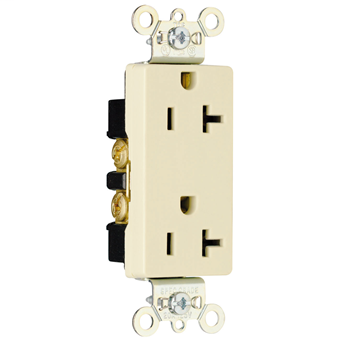

Pass & Seymour 26352-I 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Ivory Nylon Face Heavy Duty Duplex Decorator Receptacle

Features

• Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
• One-piece, brass, triple-wipe power contacts for lasting retention.
• Heavy-duty compact design for easier installation and long lasting performance.
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
• Impact-resistant nylon face.
• Terminal compartments isolated from each other for positive conductor containment.
• Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
• All devices fit standard #26 opening wall plate.
• Tri-drive terminal and mounting screws.
• Auto-ground clip assures positive ground.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

• Special Features: Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body. One-piece, brass, triple-wipe power contacts for lasting retention. Heavy-duty compact design for easier installation and long lasting performance. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. Terminal compartments isolated from each other for positive conductor containment. Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire. All devices fit standard #26 opening wall plate. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
• Certifications: FEDSPEC,CULUS
• Color: Ivory
• Country Of Origin: MX
• Product Line: Pass & Seymour
• Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
• Amperage: 20 A
• NEMA Rating: 5-20R
• Voltage: 125.0 V
• Standard: UL498, cUL CSA
• Number of Wires: 3.0
• Wire Size: #14 - #10
• Application Sector: Commercial
• Number of Poles: Double Pole
• Connection: Back and side wire
• Environmental Conditions: Flammability: UL94 V2
• Dielectric Strength: Withstands 2000V minimum

Certifications

• cULus Listed: 140596
• Federal Spec Listed: WC596
