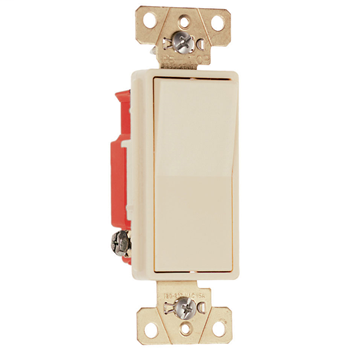

Pass & Seymour 2623-I 20 Amp 120/277 VAC 3-Way Ivory Polycarbonate Screw Mounting Rocker Decorator Switch
$7.89/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 2623-I
QED Part # 119691
3-Way

Features

  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Number Of Poles: 3-way
  • Style: Decorator

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 111
  • CSA Standard: Yes
  • UL Listing No: 20
  • UL Standard: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.06"
  • Height (US): 4.2"
  • Width (US): 1.3"

Technical Information

  • Amps: 20A
  • Volts: 120/277VAC
  • Volts (AC): 120/277

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Video

Categories

Overview

UPC 78500753953
Long Description Three-way, Back and Side Wire, Decorator Switch, 20 amps, 120/277 volts, Ivory.
GTiN 00785007539530
Width 1.3 in
Size 4.25"
Color Ivory
Voltage 277 Volt
Type Switch
Applications Industrial
Depth 1.06 in
Height 4.2 in
Country of Origin Mexico
Style Decorator
Wattage 3 Watt
Family Brand Name Pass & Seymour
Certifications CSA,UL
Amperage 20 Amp
Contact Rating 20amp, 120/277vac
Number of Poles 3 Pole
UNSPSC 39121507
Sub Brand Pass & Seymour
