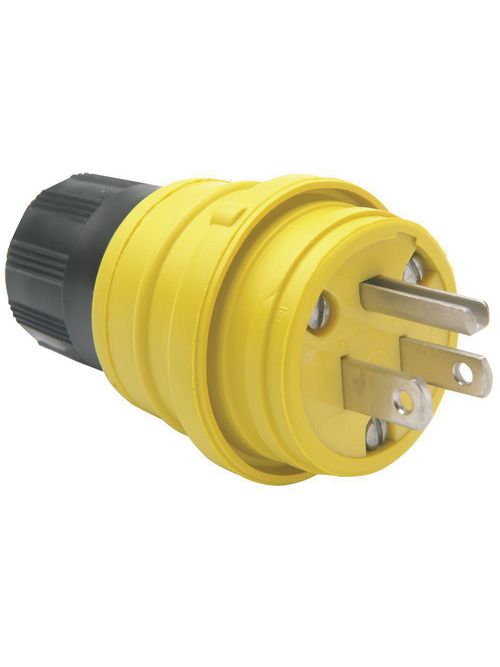

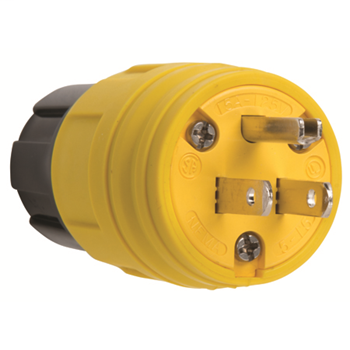

Pass & Seymour 14W-47 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15P Yellow Rubber Polarized Straight Blade Plug
$22.47/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 14W-47
QED Part # 119934
Plugs

Features

  • Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather.
  • Nickel-plated blades and contacts for long-lasting, superior corrosion resistance.
  • Devices resist high-pressure hose down of 1,500 psi.
  • Color-coded sealing bushings provided for a large range of cord diameters.
  • Large ribs on body for a superior grip when mating.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info

  • Color: Yellow
  • Type: Plug
  • Features: Watertight
  • Number Of Poles: 2 Pole
  • Number Of Wires: 3 Wire
  • Special Features: Watertight

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42M
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: E146159
  • UL Standard: Yes
  • UN SPSC: 39121402

Dimensions

  • Diameter (US): 1.63"
  • Length (US): 2.68"

Technical Information

  • Amps: 15A
  • NEMA Configuration Number: 5-15P
  • NEMA Rating: 4X/6P
  • Volts: 125V
  • Volts (AC): 125

Buy American Act Compliance

  • Country Of Origin: UNITED STATES OF AMERICA
  • Buy American Act Status: Buy American Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500711414
Long Description Rated watertight for 1,500 psi high-pressure hosedown, P&S plugs and connectors feature multiple seals to ensure protection against the environment. Constructed of a sturdy rubber body, which makes them impact- and chemical-resistant, they have nickel-plated blades and contacts for superior corrosion resistance.
GTiN 00785007114140
Length 2.68 in
Size 3.25"
Color Yellow
Voltage 125 Volt
Type Plug
Diameter 1.63 in
Material Rubber
Conductor Size 0-14 AWG
Applications Industrial
Country of Origin USA
Wire Size 14-0 AWG
Family Brand Name Pass & Seymour
NEMA 4X/6P,5-15P
Certifications UL,CSA
Buy American Compliant Yes
Amperage 15 Amp
Blade Dimensions 3-1/4 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121402
Sub Brand Pass & Seymour
