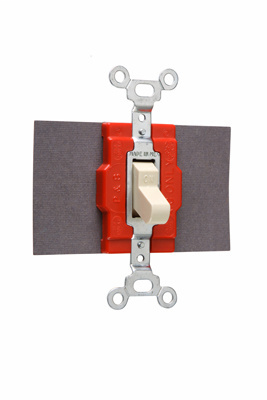

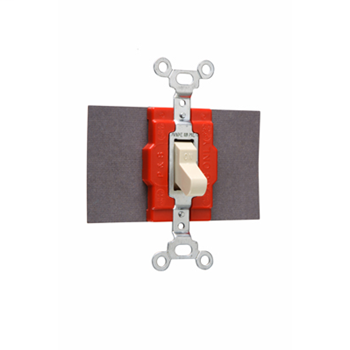

Pass & Seymour 1225-I 120/277 VAC 20 Amp 1-Pole 3-Position Ivory 2-Circuit Maintained Manual Controller Switch
*Call For Price*
Call for Availability
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 1225-I
QED Part # 119296
Industrial Grade

Features

  • Oversize silver alloy contacts for long life and better heat dissipation.
  • Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.
  • Fiber terminal insulation barriers standard.
  • Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.
  • Bodies, covers, and toggles molded of durable nylon.
  • Single Pole-Double Throw only.
  • Locking Switches supplied with one 1498-NT key.
  • Normally open.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Ivory
  • Type: Maintained Contact
  • Number Of Poles: 1
  • Special Features: Two Circuit

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: Yes
  • UL Listing No: Yes
  • UN SPSC: 39121507

Dimensions

  • Depth (US): 1.469"
  • Height (US): 3.281"
  • Width (US): 1.5"
  • Weight: 0.26408

Technical Information

  • Amps: 20A
  • Volts: 120/277VAC
  • Volts (AC): 120/277

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Single Pole, Double Throw Switch, 20 amps, 120/277 volts, Ivory.
Applications Industrial
GTiN 00785007122510
Width 1.5 in
Size 3.3"
Color Ivory
Voltage 120 Volt
Type Manual Controller Switch
Depth 1.469 in
Height 3.281 in
Country of Origin Mexico
Family Brand Name Pass & Seymour
Certifications CSA,UL
Actuator Toggle
Amperage 20 Amp
Contact Rating 20Amp, 120/277V
Number of Poles 1 Pole
Action SP, DT
Sub Brand Pass & Seymour
