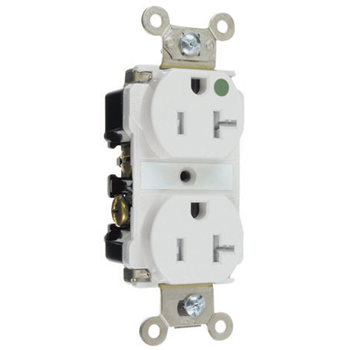

Pass & Seymour TR63-HW 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Tamper-Resistant Duplex Receptacle

Features

• Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
• Exclusive patented feature, circuit label on face allows permanent circuit identification.
• Extra heavy-duty brass, one-piece mounting strap with integral ground.
• One-piece, nickel-plated: brass, triple-wipe power contacts for lasting retention.
• Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
• Impact-resistant nylon face and back body.
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
• Two drive screws anchor strap to back body and face.
• Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
• External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
• Auto-ground clip assures positive ground.
• For covering patents, see www.legrand.us/patents.
• For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

• Country Of Origin: MX
• Special Features: Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects. Exclusive patented feature, circuit label on face allows permanent circuit identification. Extra heavy-duty brass, one-piece mounting strap with integral ground. One-piece, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Impact-resistant nylon face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Two drive screws anchor strap to back body and face. Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. Auto-ground clip assures positive ground.
• Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
• Certifications: FEDSPEC,CULUS
• Color: White
• Amperage: 20 A
• NEMA Rating: 5-20R
• Product Line: Pass & Seymour
• Voltage: 125.0 V
• Number of Wires: 3.0
• Wire Size: #14 - #10
• Application Sector: Commercial
• Number of Poles: Double Pole
• Standard: UL498, CSA C22.2 No. 42
• Connection: Back and side wire
• Environmental Conditions: Flammability: UL94 V2
• Dielectric Strength: Withstands 2000V minimum

Certifications

• Federal Spec Listed: WC596
• cULus Listed: 140596
