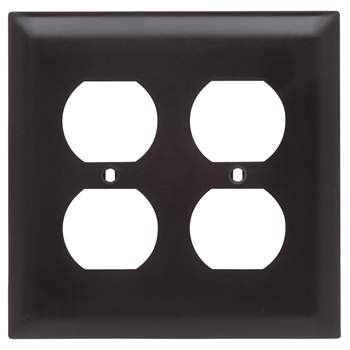

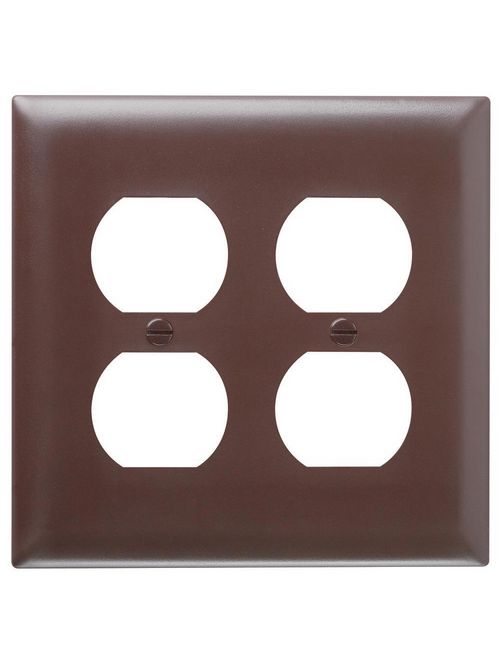

Pass & Seymour TP82 2-Gang 2-Duplex Receptacle Brown Nylon Standard Unbreakable Wallplate
Product image thumbnail 0
Product image thumbnail 1
$89.99/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # TP82
QED Part # 120705
Duplex Receptacle Plates

Features

  • Molded of rugged, practically indestructible self-extinguishing nylon. ('TP' series only.)
  • Available in 'TP' series, extra 3/16 inch width and height than Standard size plates: and 'TPJ' series, extra 3/16 inch width and height than Junior-Jumbo size plates.
  • Available in Ivory, White, Brown, Gray, Black, Blue, Orange, Red, and Light Almond.
  • Preferred for hospital, industrial, institutional, and other high-abuse applications.
  • Nominal thickness, .070 inch.
  • For covering patents, see www.legrand.us/patents.

Specifications

  • Gangs: 2.0
  • Country Of Origin: US
  • Certifications: CULUS
  • Standard: UL 514
  • Thickness: 0.07 in
  • Color: Brown
  • Product Line: Pass & Seymour
  • Cutout: Receptacle
  • Application Sector: Residential/Commercial
  • Special Features: Molded of rugged, indestructible self extinguishing nylon

Certifications

  • cULus Listed: 143222

Overview

Long Description Trademaster Plate,double gang and duplex plate, is molded of rugged, practically indestructible self-extinguishing nylon. It is preferred for hospital, industrial, institutional, and other high-abuse applications. Available in Ivory, White, Brown, Gray, Black, Blue, Orange, Red, and Light Almond.
GTiN 00785007275193
Size Standard
Color Brown
Type Halogen Free
Thickness 0.35 in
Material Nylon
Applications Residential, Commercial
Country of Origin USA
Family Brand Name Pass & Seymour
Certifications CULUS
Buy American Compliant Yes
Number of Gangs 2 Gang
UNSPSC 39121704
Sub Brand Pass & Seymour
Length 4.7 in
Width 120.6 mm
Used With Duplex Receptacle
UPC 78500727519
