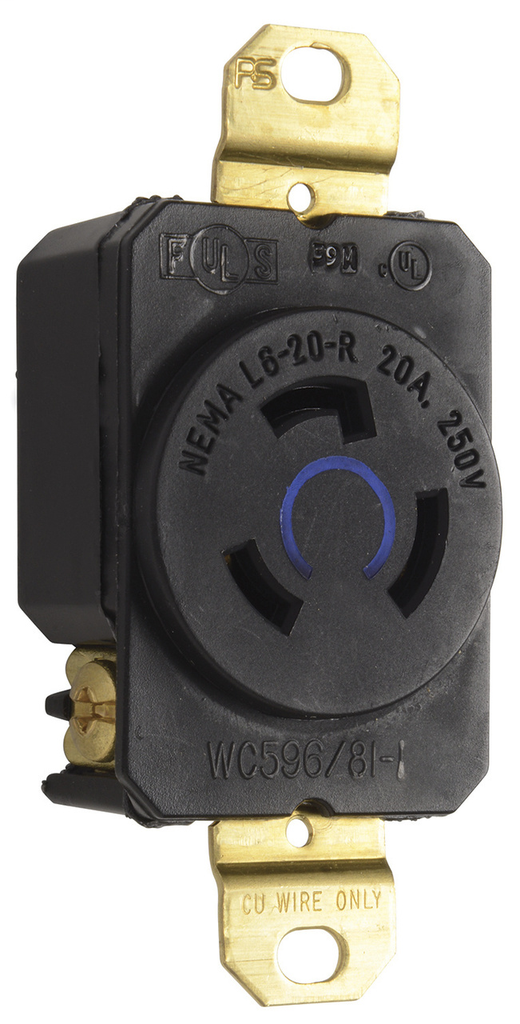

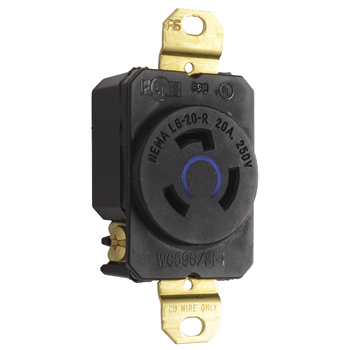

Pass & Seymour L620-R 20 Amp 250 VAC 2-Pole 3-Wire NEMA L6-20R Impact-Resistant Nylon Locking Single Receptacle
$17.27/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L620-R
QED Part # 121541
Single

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

General Info

  • Type: Single Receptacles
  • Number Of Wires: 3

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • CUL Listing No: No
  • cULus: Yes
  • cURus: No
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403
  • UR: No

Dimensions

  • Depth (US): 1.19"
  • Height (US): 3.28"
  • Width (US): 1.61"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: L620
  • Volts: 250V
  • Volts (AC): 250

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

Long Description Turnlok Receptacle Single 3wire 20amp 250v
GTiN 00785007262056
Finish Gloss
Width 1.61 in
Size 3.3 in
Color Black
Voltage 250 Volt
Type Single Receptacles
Material Nylon
Conductor Size 4 AWG
Applications Industrial Spec Grade
Mounting Type Flush
Depth 1.19 in
Height 3.28 in
Grade Industrial/Specifica
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA L620
Certifications CULUS
Amperage 20 Amp
Blade Dimensions 3.3 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Turnlok
UPC 78500726205
