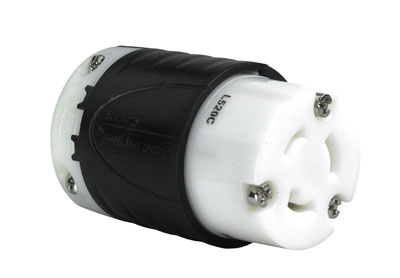

Pass & Seymour L520-C 20 Amp 125 VAC 2-Pole 3-Wire L5-20R Black and White Nylon Locking Connector
$19.67/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L520-C
QED Part # 119529
Connectors

Features

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

General Info

  • Color: Black, White
  • Type: Connector
  • Number Of Wires: 3

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • CUL Listing No: No
  • cULus: Yes
  • cURus: No
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403
  • UR: No

Dimensions

  • Diameter (US): 2.20"
  • Length (US): 3.33"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: L520
  • Volts: 125V
  • Volts (AC): 125

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500725201
Long Description Turnlok Connector 3wire 20amp 125v
GTiN 00785007252019
Length 3.3 in
Size 3.3 in
Color Black and White
Voltage 125 Volt
Type Straight
Diameter 2.20 in
Material Nylon
Number of Conductors 3
Conductor Size 4 AWG
Applications Industrial Spec Grade
Country of Origin Mexico
Wire Size 4 AWG
Connection Type Screw Terminal
Family Brand Name Pass & Seymour
NEMA L520
Certifications CULUS,FEDSPEC
Number of Ports 2
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Turnlok
