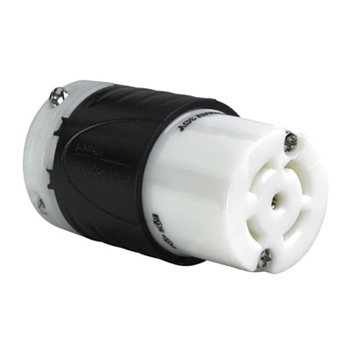

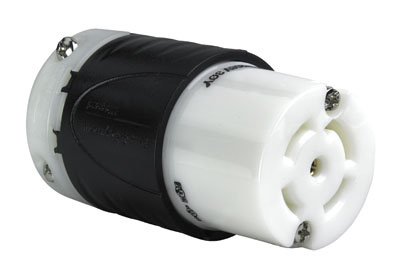

Pass & Seymour L2130-C 30 Amp 120/208 VAC Star 3-Phase 4-Pole 5-Wire L21-30R Black and White Nylon Locking Connector

Features

• Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
• Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
• Raised ribs provide non-slip gripping profile for turning to lock and unlock.
• Double dovetail design provides superior protection against cord pull-out forces.
• Impact- and corrosion-resistant durable nylon 6 shell material.
• Rounded back contour reduces snags and hang-ups on the job site.
• Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
• Visible stamped NEMA configuration and device rating.
• New-design external cord grips provide visible assurance of safe and proper cord retention.
• Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

General Info

• Color: Black, White
• Type: Connector
• Number Of Wires: 5

Listing Agencies/Third Party Certifications

• RoHS: Yes
• CSA Standard: Yes
• Federal Spec: Yes
• UL Listing No: 498
• UL Standard: Yes
• UN SPSC: 39121403

Dimensions

• Diameter (US): 2.20"
• Length (US): 3.33"

Technical Information

• Amps: 30A
• NEMA Configuration Number: L2120
• Volts: 120/208V
• Volts (AC): 120/208

Buy American Act Compliance

• Country Of Origin: MEXICO
• Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

• RoHS Compliant
