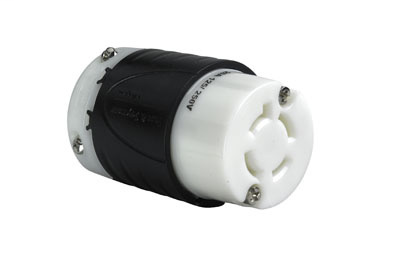

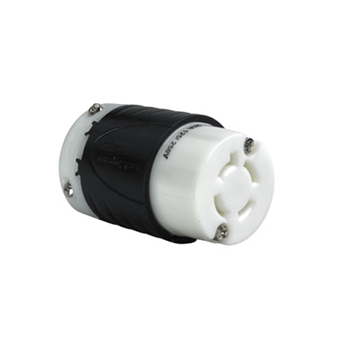

Pass & Seymour L1420-C 20 Amp 125/250 VAC 3-Pole 4-Wire L14-20R Black and White Nylon Locking Connector
$27.79/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L1420-C
QED Part # 121568
Connectors

Features

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

General Info

  • Color: Black, White
  • Type: Connector
  • Number Of Wires: 4

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403

Dimensions

  • Diameter (US): 2.20"
  • Length (US): 3.33"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: L1420
  • Volts: 125/250V
  • Volts (AC): 125/250

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500714201
Long Description Turnlok Connector 4wire 20amp 125/250v
GTiN 00785007142013
Length 3.3 in
Size 3.3 in
Color Black and White
Voltage 125 Volt
Type Female
Diameter 2.20 in
Material Nylon
Number of Conductors 4
Conductor Size 4 AWG
Applications Industrial Spec Grade
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA L1420
Certifications FEDSPEC,CULUS
Number of Ports 2
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 4
UNSPSC 39121403
Sub Brand Turnlok
