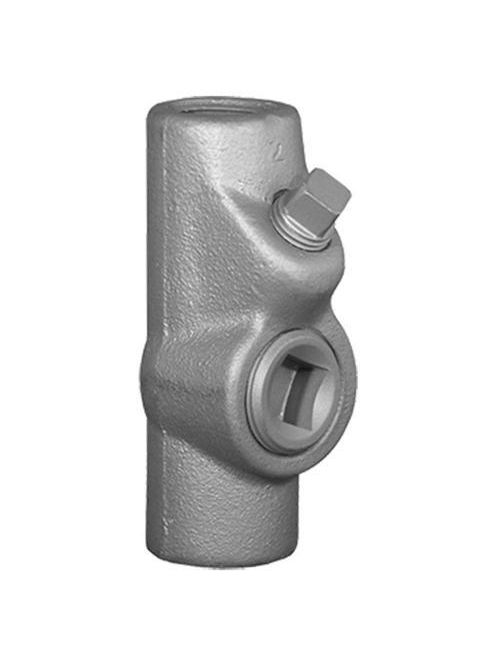

Appleton EYF-100 1" Explosion Proof Sealing Fitting
$24.07/ea
In Stock | 20 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Appleton
Mfg Catalog # EYF-100
QED Part # 1276915
UNILETS Type EYF are female/female conduit sealing fittings. It prevent passage of gases, vapors or flames from one portion of a conduit system to another. They prevent pressure piling the within conduit system and contain any explosion that occurs. EY series is a close radius type for sealing vertical or horizontal conduit runs. Explosion proof, dust-ignition proof, rain tight. Smooth, rounded integral bushing in each hub protects conductor insulation. Accurately tapped, tapered threads for tight, rigid joints and ground continuity. Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub.

Overview

UPC 78138113514
Family Brand Name Appleton Group
Long Description UNILETS Type EYF are female/female conduit sealing fittings. It prevent passage of gases, vapors or flames from one portion of a conduit system to another. They prevent pressure piling the within conduit system and contain any explosion that occurs. EY series is a close radius type for sealing vertical or horizontal conduit runs. Explosion proof, dust-ignition proof, rain tight. Smooth, rounded integral bushing in each hub protects conductor insulation. Accurately tapped, tapered threads for tight, rigid joints and ground continuity. Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub.
GTiN 00781381135146
Finish Electro Zinc Plated/Chromate/Epoxy Powder Coated
Size 1 IN
Type Explosionproof, 25% Fill
Material Malleable Iron
Applications For Use With Threaded Rigid Metal Conduit and IMC
Trade Size 1 Inch
TC Connection Female Threaded
Blade Dimensions 44.4 mm OD
Used With Threaded Rigid Metal Conduit and IMC
Sub Brand Unilet
