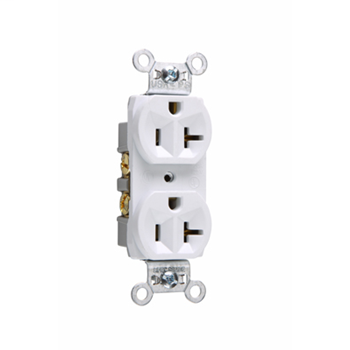

Pass & Seymour CR20-W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Face Corrosion-Resistant Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
$1.74/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # CR20W
QED Part # 119276
Duplex

Features

  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Country Of Origin: MX
  • Amperage: 20 A
  • Standard: UL 498
  • Color: White
  • NEMA Rating: 5-20R
  • Voltage: 125.0 V
  • Product Line: Pass & Seymour
  • Wire Size: 4 AWG
  • Number of Wires: 3.0
  • Connection: Wire Ground
  • Number of Poles: Double Pole
  • Application Sector: Residential/Commercial
  • Special Features: Side wire, Duplex, tri-driver terminal &Mountingscrews

Overview

Long Description Commercial Spec Grade Duplex Receptacle, Side Wire 20amp 125volt, Gray
GTiN 00785007119183
Finish Untreated, Gloss
Width 1.322 in
Size 3.3 in
Color White
Voltage 125 Volt
Type Receptacles
Material Thermoplastic
Conductor Size 4 AWG
Applications Residential/Commercial
Mounting Type Wall, Flush
Depth 0.78 in
Height 3.281 in
Grade Residential/Commercial
Country of Origin Mexico
Wire Size 4 AWG
Capacity Duplex
Connection Type Wire Ground, Side Wire
Family Brand Name Pass & Seymour
NEMA 5-20R
TC Connection Wire Ground
Amperage 20 Amp
Blade Dimensions 33.58 mm W x 19.81 mm D x 83.31 mm H
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
UPC 78500711918
