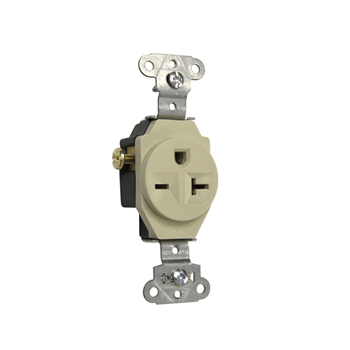

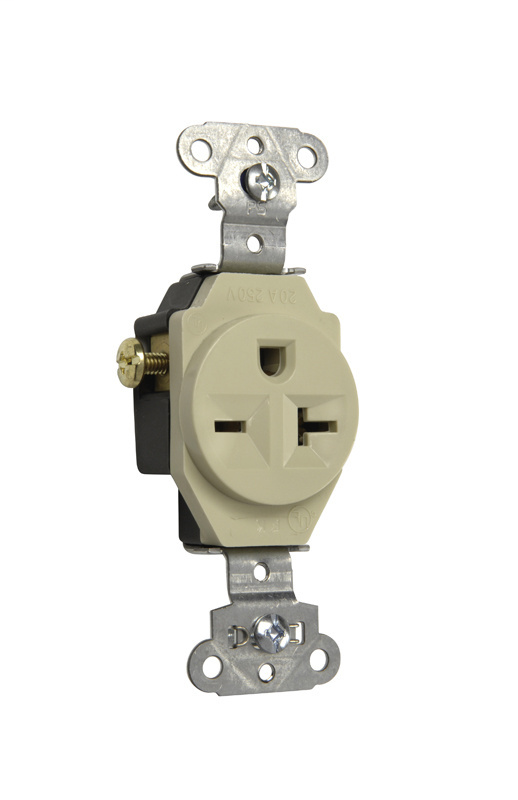

Pass & Seymour 5851-I 20 Amp 250 VAC 2-Pole 3-Wire NEMA 6-20R Ivory Heavy Duty Single Receptacle
$8.69/ea
In Stock | 8 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 5851-I
QED Part # 121502
Single

Features

  • Auto-ground clip assures positive ground.
  • Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Ivory
  • Type: Single Receptacles
  • Duty: Heavy Duty
  • Special Features: Side Wire

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • cURus: No
  • Federal Spec: No
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406
  • UR: No

Dimensions

  • Depth (US): 1.08"
  • Height (US): 3.28"
  • Width (US): 1.380"

Technical Information

  • Amps: 20A
  • Volts: 250V
  • Volts (AC): 250
  • Capacity: Single
  • Grade Type: Federal Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Categories

Overview

UPC 78500758511
Long Description Heavy-Duty Spec Grade Single Receptacle, Side Wire 20amp 250volt, Ivory
GTiN 00785007585117
Finish Gloss
Width 1.380 in
Size 3.3 in
Color Ivory
Voltage 250 Volt
Type Single Receptacles
Material Thermoplastic
Conductor Size 4 AWG
Applications Residential/Commercial
Mounting Type Wall, Flush
Depth 1.08 in
Height 3.28 in
Grade Residential/Commerci
Country of Origin Mexico
Wire Size 4 AWG
Capacity Single
Connection Type Wire Ground, Side Wire
Family Brand Name Pass & Seymour
Certifications CULUS
TC Connection Wire Ground
Duty Rating Heavy Duty
Amperage 20 Amp
Blade Dimensions 3.3 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
