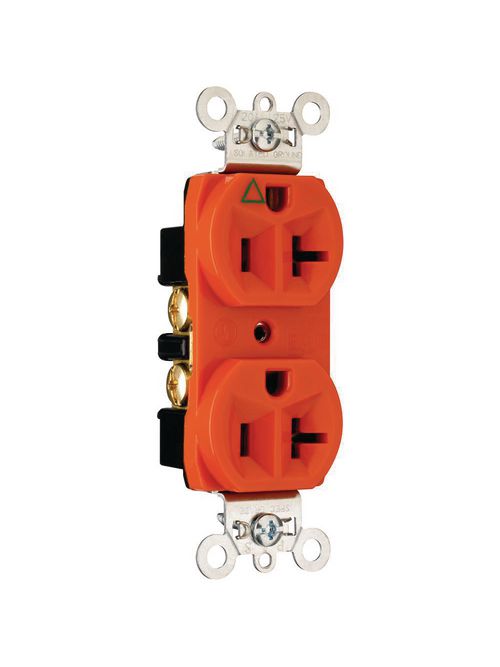

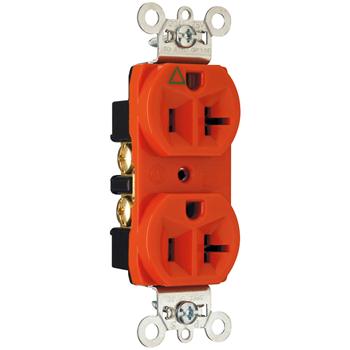

Pass & Seymour IG5362 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Orange Nylon Face Duplex Isolated Ground Receptacle
$7.89/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # IG5362
QED Part # 121567
Duplex

Features

  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
  • High-impact resistant nylon face resists impacts and scrapes.
  • Corrosion-resistant plated steel strap.
  • Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info

  • Color: Orange
  • Type: Receptacles
  • Number Of Poles: 2
  • Number Of Wires: 3
  • Special Features: Isolated ground,back,side wire
  • Style: Duplex

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Listing Info: C22.2 No. 42
  • CSA Standard: Yes
  • Federal Spec: Yes
  • UL Listing No: UL498
  • UL Standard: Yes
  • UN SPSC: 39121406
  • UR: No

Dimensions

  • Depth (US): 0.922"
  • Height (US): 3.281"
  • Width (US): 1.322"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: 5-20R
  • Volts: 125V
  • Volts (AC): 125
  • Capacity: Duplex
  • Grade Type: Federal Specification

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Video

Overview

UPC 78500704534
Long Description Isolated Ground Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Orange
GTiN 00785007045345
Finish Enamel Painted, Gloss
Width 1.322 in
Size 3.3 in
Color Orange
Voltage 125 Volt
Type Isolated Ground
Material Thermoplastic
Conductor Size 4 AWG
Applications Residential/Commercial
Mounting Type Wall, Flush
Depth 0.922 in
Height 3.281 in
Grade Commercial
Country of Origin Mexico
Style Duplex
Wire Size 4 AWG
Capacity Duplex
Connection Type Wire Ground
Family Brand Name Pass & Seymour
NEMA 5-20R
Certifications CULUS
TC Connection Wire Ground
Amperage 20 Amp
Blade Dimensions 3.3 in
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
