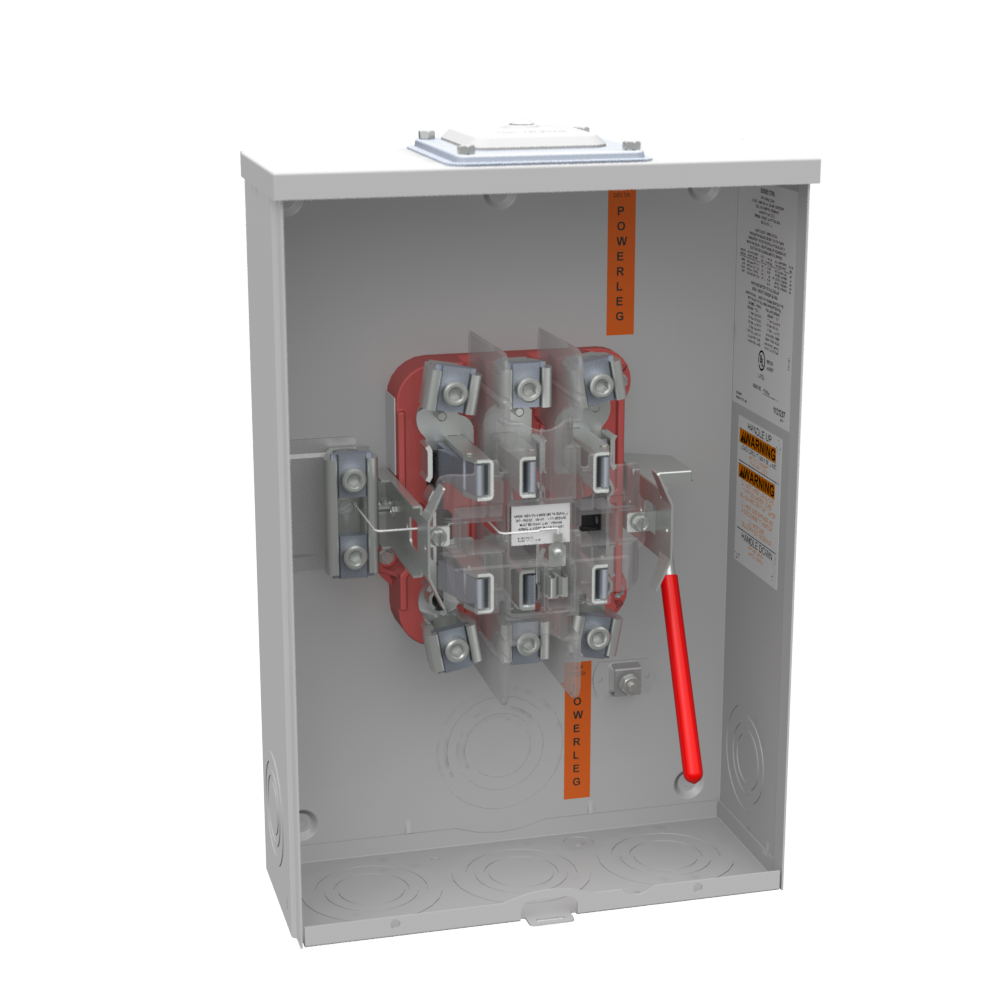

Milbank U9701-RXL 600 VAC 200 Amp 7-Terminal 3-Phase 1-Position Ringless Overhead/Underground Meter Socket
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$268.99/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Milbank
Mfg Catalog # U9701-RXL
QED Part # 149792
Single Position Sockets

Specifications

  • Brand Name: Milbank
  • Type: Ringless Meter Socket
  • Application: Meter Socket
  • Standard: UL Listed;Type 3R
  • Voltage Rating: 600 Volts Alternating Current
  • Amperage Rating: 200 Continuous Ampere
  • Phase: 3 Phase
  • Frequency Rating: 60 Hertz
  • Size: 4.844L x 13W x19H
  • Number of Main Breakers: 0
  • Main Breaker Size: No Main Breaker
  • Cable Entry: Overhead or Underground
  • Terminal: Lay in
  • Insulation: Glass Polyester
  • Mounting: Surface Mount
  • Material: G90 Galvanized Steel with Powder Coat Finish
  • Number of Jaws: 7 Terminal
  • Bypass Provision: Lever Bypass
  • Number of Meter Positions: 1 Position
  • Equipment Ground: Grounding Stud
  • Hub/Closing Plate: Large Hub Opening Adapted to Small Closing Plate
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Number of Receptacles: 0
  • Height: 19 IN
  • Length: 4.844 IN
  • Width: 13 IN
  • UNSPSC Number: 39121102
  • Product Family Code: HD7T
  • Product Family Disclaimer: Please consult serving utility for their requirements prior to ordering or installing, as specifications and approvals vary by utility and may require local electrical inspector approval. All installations must be installed by a licensed electrician and must comply with all national and local codes, laws and regulations. Milbank reserves the right to make changes in specifications and features shown without notice or obligation.

Overview

UPC 78457214338
Long Description 7 TERM RNGLS LRG HUB OPEN ADAPT TO SML CLS PLT LVR BYPS
GTiN 00784572143388
Length 4.844 in
Width 13 in
Size 4.844L x 13W x19H
Voltage 600 Volt
Type Ringless Meter Socket
Insulation Type Glass Polyester
Material G90 Galvanized Steel With Powder Coat Finish
Terminal Type Lay In
Applications Meter Socket
Mounting Type Surface Mount
Height 19 in
Standard Type 3R,UL Listed
Frequency 60 Hz
Family Brand Name Milbank
Number of Phases 3
Number of Terminations 7
Amperage 200 Amp
Hub Style Large Hub Opening Ad
Cable Entry Overhead Or Underground
Enclosure G90 Galvanized Steel
