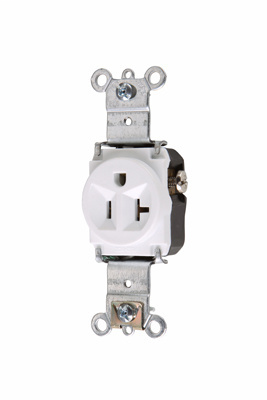

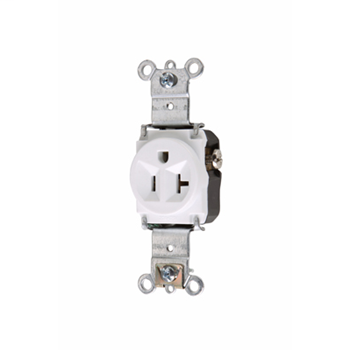

Pass & Seymour 5361-W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Nylon Face Heavy Duty Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
$6.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # 5361-W
QED Part # 121382
Single

Features

  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • One-piece brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

  • Special Features: Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. One-piece brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. Internal screw-pressure-plate back wire capable of accepting #14 - #10 AWG solid or stranded copper or copper-clad wire. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
  • Country Of Origin: MX
  • Temperature Rating: Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • Certifications: FEDSPEC,CUL
  • Color: White
  • Amperage: 20 A
  • NEMA Rating: 5-20R
  • Product Line: Pass & Seymour
  • Voltage: 125.0 V
  • Number of Wires: 3.0
  • Wire Size: #14 - #10
  • Application Sector: Commercial
  • Number of Poles: Double Pole
  • Standard: UL498, CSA C22.2 No. 42
  • Connection: Back and side wire
  • Environmental Conditions: Flammability: UL94 V2
  • Dielectric Strength: Withstands 2000V minimum

Certifications

  • cUL Listed: 140596
  • Federal Spec Listed: WC596

Overview

Long Description Heavy-Duty Spec Grade Single Receptacle, Back & Side Wire, 20amp 125volt, Red
GTiN 00785007536157
Finish Gloss
Width 1.32 in
Size 1.32 L x 1.093 W x 3.68 H In
Color White
Voltage 125 Volt
Type Heavy Duty
Material Nylon
Conductor Size 14-10 AWG
Applications Commercial Grade
Mounting Type Wall, Flush
Depth 1.093 in
Height 3.28 in
Grade Specification
Country of Origin Mexico
Wire Size 14-10 AWG
Capacity Single
Connection Type Back and Side Wire
Temperature Rating -40 to 60 C
Family Brand Name Pass & Seymour
Certifications CUL,FEDSPEC
TC Connection Back and side wire
Duty Rating Heavy Duty
Amperage 20 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.32 in L x 1.093 in W x 3.68 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
UNSPSC 39121406
Sub Brand Pass & Seymour
UPC 78500753615
NEMA 5-20R
