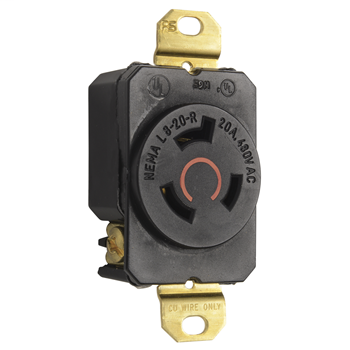

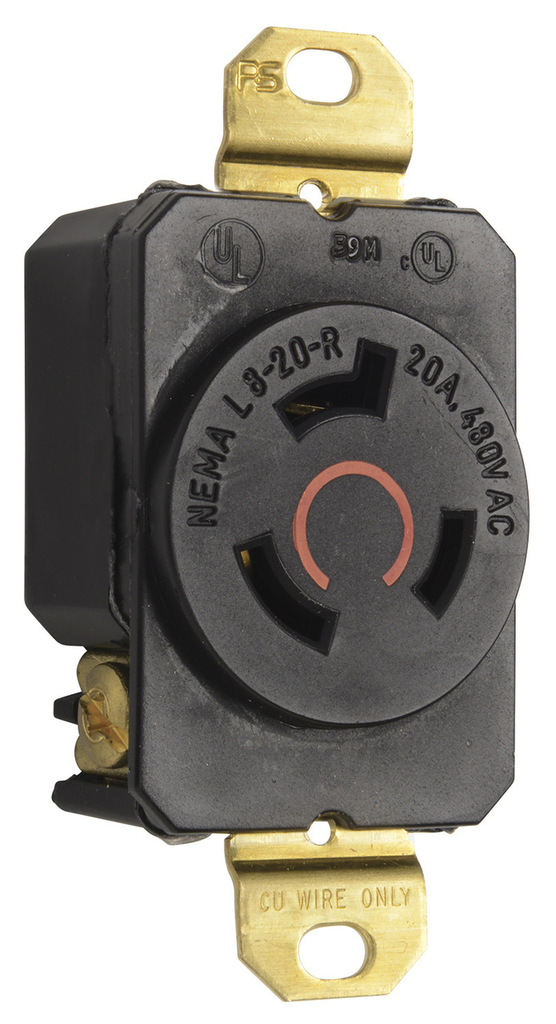

Pass & Seymour L820-R 20 Amp 480 VAC 2-Pole 3-Wire NEMA L8-20R Impact-Resistant Nylon Locking Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
$24.47/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L820R
QED Part # 121551
Single

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

  • Environmental Conditions: Flammability: UL94 V2: Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
  • Country Of Origin: MX
  • Amperage: 20 A
  • Certifications: CULUS
  • NEMA Rating: L8-20R
  • Voltage: 480.0 V
  • Product Line: Pass & Seymour
  • Number of Wires: 3.0
  • Wire Size: #14 - #10
  • Application Sector: Industrial
  • Number of Poles: Double Pole
  • Standard: UL498, CSA C22.2 No. 42
  • Connection: Back and side wire
  • Special Features: Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength. Face color coding by voltage facilitates locating and mating of proper devices. One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance. Clearly marked NEMA configuration, rating, and third-party listing on each unit's face. Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands. Side and external screw-pressure-plate back wire capability. Accepts #14 - #10 AWG.

Certifications

  • cULus Listed: 140596

Overview

Long Description Industrial Spec Grade SingleTurnlok 20amp 480V Receptacle
GTiN 00785007282054
Width 1.61 in
Size 1.61 L x 1.19 W x 3.28 H In
Color Black
Type Single Receptacles
Material Nylon
Applications Industrial
Depth 1.19 in
Height 3.28 in
Country of Origin Mexico
Wire Size 14-10 AWG
Family Brand Name Pass & Seymour
NEMA L8-20R
Certifications CULUS
TC Connection Back and side wire
Amperage 20 Amp
Environmental Conditions -40 to 75 C
Number of Poles 2 Pole
Number of Wires 3.0
UNSPSC 39121403
Sub Brand Pass & Seymour
Voltage 480 Volt
UPC 78500728205
