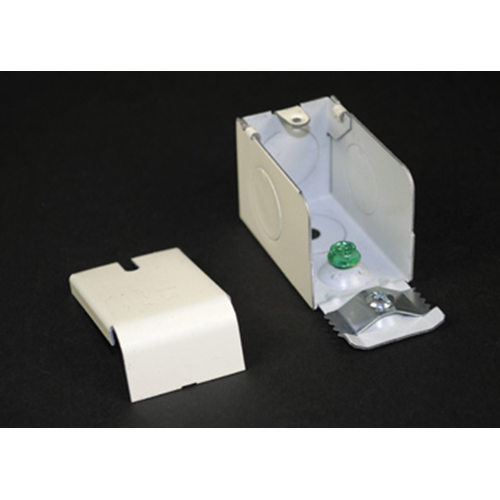

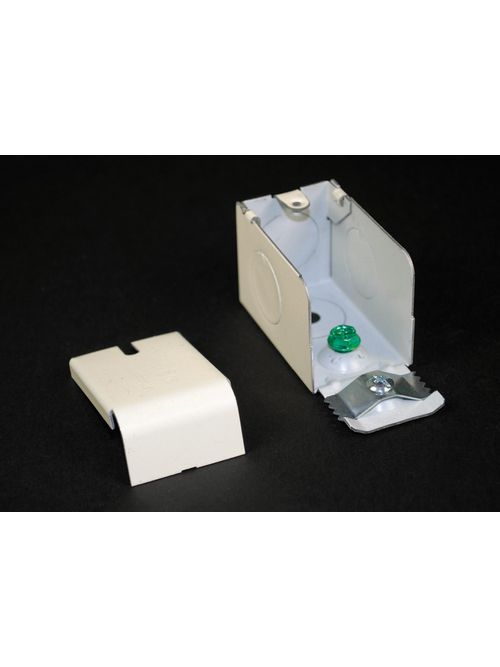

Wiremold V2010A2 3 x 1-9/32 x 1-1/2" Ivory Steel 1-Channel Raceway Entrance End
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$7.09/ea
In Stock | 27 available at 5 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # V2010A2
QED Part # 136295
Fittings & Accessories

Features & Benefits

  • Connects standard 1/2" conduit to Plugmold strip.

Specifications

General Info

  • Available Colors: V2010A2 - IvoryG2010A2 - Gray
  • Product Series: Plugmold
  • Product Series: 2000
  • Component Type: Fittings & Accessories

Construction Information

  • Installation Location: On-wall

Technical Information

  • Capacity: Single-Channel
  • Material: Steel
  • Volts: 125V

Compatible Series

  • V20GB612, G20GB612, BK20GB612, WH20GB612, S20GB612
  • 2000-PM
  • V20GBA512, G20GBA512
  • V20IG606, G20IG606
  • V20GB606TR, G20GB606TR, BK20GB606TR, WH20GB606TR, S20GB606TR
  • V20GB506, G20GB506, BK20GB506, WH20GB506, S20GB506
  • V20IG512, G20IG512
  • 2000GFI
  • BK20GB606TRGFI, G20GB606TRGFI, S20GB606TRGFI, V20GB606TRGFI, WH20GB606TRGFI
  • BK20GB606TRUSB, G20GB606TRUSB, S20GB606TRUSB, V20GB606TRUSB, WH20GB606TRUSB
  • AL20GB306TRGFI, BK20GB306TRGFI, G20GB306TRGFI, S20GB306TRGFI, V20GB306TRGFI, WH20GB306TRGFI
  • AL20GB506TRUSB, BK20GB506TRUSB, G20GB506TRUSB, S20GB506TRUSB, V20GB506TRUSB, WH20GB506TRUSB
  • V20GB306TR, G20GB306TR, BK20GB306TR, WH20GB306TR, S20GB306TR
  • V20IG306, G20IG306
  • V20GB30
  • V20GB606, G20GB606, BK20GB606, WH20GB606, S20GB606
  • 2000
  • V20GB18, G20GB18
  • 2000USB
  • V20GB12, G20GB12
  • V20GBA612, G20GBA612
  • V20GB609, G20GB609
  • V20GBA618, G20GBA618
  • V20GB506TR, G20GB506TR, BK20GB506TR, WH20GB506TR, S20GB506TR
  • V20GB618, G20GB618
  • AL20GB506TRGFI, BK20GB506TRGFI, G20GB506TRGFI, S20GB506TRGFI, V20GB506TRGFI, WH20GB506TRGFI
  • AL20GB306TRUSB, BK20GB306TRUSB, G20GB306TRUSB, S20GB306TRUSB, V20GB306TRUSB, WH20GB306TRUSB
  • 2000TR
  • V20GBA12, G20GBA12
  • V20GB512, G20GB512, BK20GB512, WH20GB512, S20GB512
  • V20GBA609, G20GBA609

Resources

Related Products

  • WSR320-S

Overview

Long Description Connects 2000 Series Raceway to 1/2" trade size conduit or armored cable connectors. 1/2" trade size KOs located on end, sides, and bottom of fitting. Includes ground screw. If more capacity is required, use 2010A3.
GTiN 00786776090840
Length 3 in
Width 1.28125 in
Voltage 125 Volt
Type Flat
Material Steel
Product Series 2000,Plugmold
Applications For Commercial, Office, Residential Use
Component Type Fittings & Accessories
Height 1-1/2 in
Country of Origin United States
Family Brand Name Wiremold
Certifications NAFTA,ROHS,CULUS
Enclosure Steel
Sub Brand Plugmold
Color Ivory
Blade Dimensions 3 in L x 1-9/32 in W x 1-1/2 in H
Used With 2000 Series Raceway, Multi-Outlet Power
