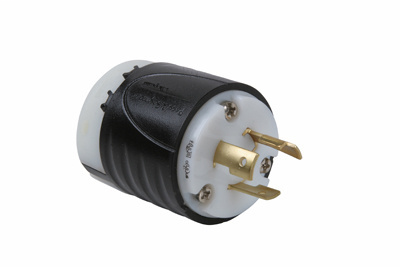

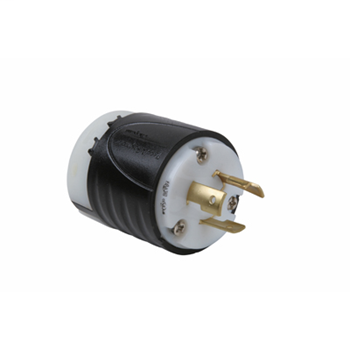

Pass & Seymour L620-P 20 Amp 250 VAC 2-Pole 3-Wire NEMA L6-20P Black and White Nylon Straight Locking Plug
$14.87/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L620-P
QED Part # 119238
Plugs

Features

  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • Double dovetail design provides superior protection against cord pull-out forces.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.

Specifications

General Info

  • Color: Black, White
  • Type: Plug
  • Number Of Wires: 3

Listing Agencies/Third Party Certifications

  • RoHS: Yes
  • CSA Standard: Yes
  • CUL Listing No: No
  • cULus: Yes
  • cURus: No
  • Federal Spec: Yes
  • UL Listing No: 498
  • UL Standard: Yes
  • UN SPSC: 39121403
  • UR: No

Dimensions

  • Depth (US): 2.20"
  • Length (US): 2.57"

Technical Information

  • Amps: 20A
  • NEMA Configuration Number: L620
  • Volts: 250V
  • Volts (AC): 250

Buy American Act Compliance

  • Country Of Origin: MEXICO
  • Buy American Act Status: Trade Agreement Act Compliant

Eco-Benefit Information

  • RoHS Compliant

Overview

UPC 78500726204
Long Description Turnlok Plug 3wire 20amp 250v
GTiN 00785007262049
Length 2.57 in
Size 3.8 in
Color White,Black
Voltage 250 Volt
Type Plug
Material Nylon
Conductor Size 4 AWG
Applications Industrial Spec Grade
Depth 2.20 in
Country of Origin Mexico
Wire Size 4
Family Brand Name Pass & Seymour
NEMA L620
Certifications CULUS
Amperage 20 Amp
Blade Dimensions 3.8 in
Number of Poles 2
Number of Wires 3
UNSPSC 39121403
Sub Brand Pass & Seymour
