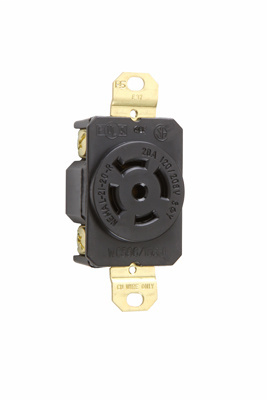

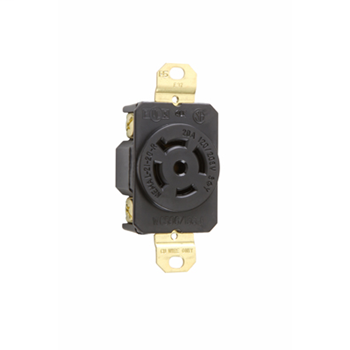

Pass & Seymour L2120-R 20 Amp 120/208 VAC 3-Phase 4-Pole 5-Wire NEMA L21-20R Impact Resistant Nylon Locking Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer Pass & Seymour / Legrand
Mfg Catalog # L2120R
QED Part # 119239


  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.


  • Amperage: 20 A
  • Country Of Origin: MX
  • Certifications: FEDSPEC,CULUS
  • Standard: UL 498
  • Color: Black
  • NEMA Rating: L21-20R
  • Product Line: Pass & Seymour
  • Voltage: 120.0 V
  • Wire Size: 4 AWG
  • Number of Wires: 3.0
  • Application Sector: Industrial
  • Number of Poles: Double Pole
  • Special Features: Locking Device, impact resistant


  • Federal Spec Listed: WC596
  • cULus Listed: 140596


Long Description Turnlok Single Receptacle 5wire 20amp 3phase 120/208v
GTiN 00785007212051
Finish Untreated
Width 1.61 in
Size 3.3 in
Color Black
Voltage 120 Volt
Type Single Receptacles
Material Nylon
Conductor Size 4 AWG
Applications Industrial Spec Grade
Mounting Type Flush
Depth 1.19 in
Height 3.28 in
Grade Industrial/Specification
Country of Origin Mexico
Wire Size 4 AWG
Family Brand Name Pass & Seymour
NEMA L21-20R
Certifications CULUS,FEDSPEC
Amperage 20 Amp
Blade Dimensions 40.4 mm W x 30.2 mm D x 83.3 mm H
Number of Poles 4 Pole
Number of Wires 3
UNSPSC 39121403
Sub Brand Turnlok
UPC 78500721205
