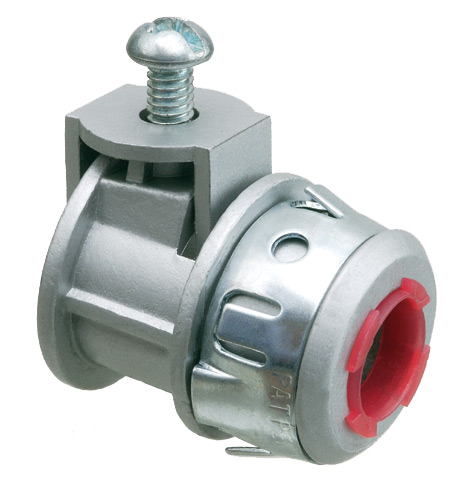

Arlington SG38AST Saddlegrip Snap-Tite Connector with Insulated Throat
$95.99/c (100 ea)
In Stock | 23134 available at 7 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arlington Industries
Mfg Catalog # SG38AST
QED Part # 139973
Screw-On Snap-In Flex Connectors

Specifications

Basic Information

  • UPC: 018997801449
  • Unit Packaging: 50pcs
  • Standard Packaging: 500pcs
  • Country of Origin: United States
  • Listing: cULus, CSA

Physical Information

  • Weight: 0.062 lbs/each
  • Height: 1.203"
  • Width: 1.077"
  • Color: Silver
  • Material(s): Zinc

Technical Information

  • Cable Range: 0.405 - 0.612
  • End Stop Diameter: 0.400
  • Knockout Size(s): 1/2"
  • Trade Size: 3/8"

Categories

Overview

Long Description Zinc die-cast, 1/2" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. Snaps into knockout with external spring steel clip. Provided with insulated throat. Concrete tight when taped. Supports .405 to .612 cable range with a .400 end stop diameter.
Applications Aluminum And Steel Flex AC MC Cable, MCI-A
GTiN 00018997801449
Width 1.077 in
Size 3/8 in
Color Silver
Type Connector
Material Zinc
Height 1.203 in
Weight 0.062 lb
Country of Origin USA
Knockout Size 1/2 in
Trade Size 3/8 Inch
Pkg Qty 500
Family Brand Name Arlington
Sub Brand Snap-Tite, Saddlegri
UPC 01899780144
