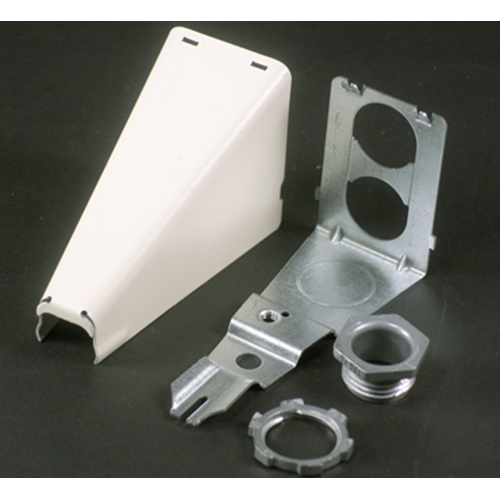

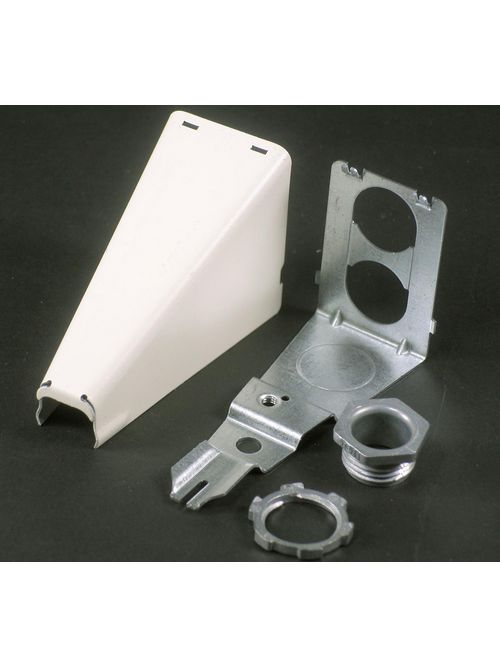

Wiremold V5786 3-7/8 x 1-5/8 x 2-3/8" Ivory Steel 1-Channel Raceway Adjustable Offset Connector
Product image thumbnail 0
Product image thumbnail 1
$14.87/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # V5786
QED Part # 136297
Fittings & Accessories

Specifications

General Info

  • Component Type: Fittings & Accessories
  • Available Colors: V5786 - Ivory5786WH - White
  • Product Series: 500, 700

Technical Information

  • Capacity: Single-Channel
  • Material: Steel

Compatible Series

  • V500, V500-5, V700, 700WH, V700-5

Resources

Overview

UPC 78677607064
Long Description Eliminates need to offset raceway when connecting to surface type panel boxes. Adjustment from surface to center of bushings is 5/8" [15.9mm] minimum to 1 3/8" [35mm] maximum. When used as adjustable offset connector, break out metal between the two holes. When used with 700 Series Raceway, break out crescent twistout in cover. 1/2" trade size chase nipple and HICknut furnished.
GTiN 00786776070644
Length 3-7/16 in
Type Open, Adjustable Offset
Diameter 1-5/8 x 2-3/8 in OD
Material Steel
Product Series 700,500
Applications Commercial, Office, Residential
Component Type Fittings & Accessories
Country of Origin United States
Family Brand Name Wiremold
Certifications NAFTA,CULUS,ROHS
Outside Diameter 1 5/8" x 2 3/8"
Jacket Color Ivory, White
Used With 500 and 700 Series Raceway
Sub Brand Wiremold
