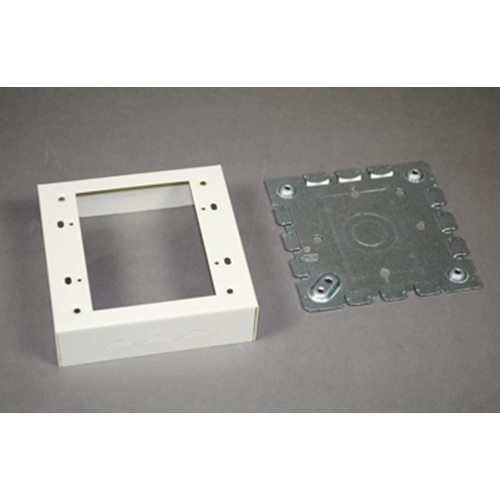

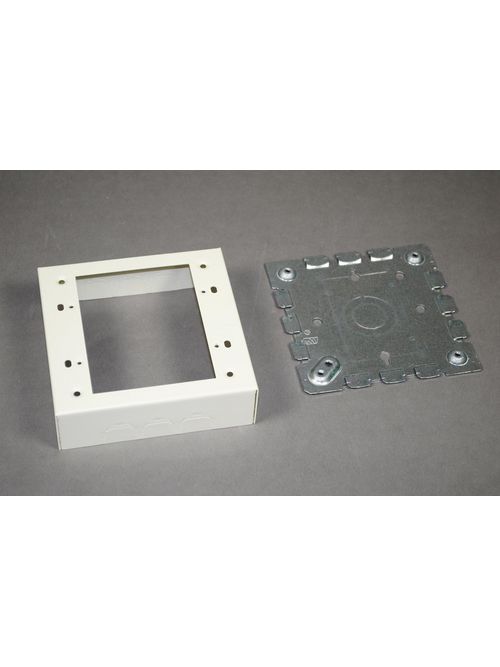

Wiremold V5747-2 4-3/4 x 4-3/4 x 1-3/8" Ivory Steel 1-Channel Raceway 2-Gang Shallow Switch and Receptacle Box
Product image thumbnail 0
Product image thumbnail 1
$17.67/ea
In Stock | 15 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # V5747-2
QED Part # 136132
Boxes & Outlets

Specifications

General Info

  • Component Type: Boxes
  • Available Colors: V5747-2 - Ivory5747-2WH - White
  • Product Series: 500, 700

Technical Information

  • Capacity: Single-Channel
  • Material: Steel

Compatible Series

  • V500, V500-5, V700, 700WH, V700-5

Resources

Overview

Long Description For standard shallow switches and receptacles including single-gang combination devices. Base has two 1/2" trade size KOs. Larger gang boxes available by special order. Two-gang: 4 3/4" L x 4 3/4" W [121mm x 121mm]. Accepts NEMA double-gang standard faceplates. NOTE: Certified to Canadian Safety Standards for sale in Canada. When ordering these products, change the "V" color prefix to "vc" or the "WH" color suffix to "WHC" to denote the Canadian versions.
GTiN 00786776070538
Length 4-3/4 in
Type 500 & 700 Series Raceway
Material Steel
Product Series 500,700
Applications Commercial, Office, Residential
Component Type Boxes
Country of Origin United States
Family Brand Name Wiremold
Certifications ROHS,UL,NAFTA
Outside Diameter 1 3/8" x 4 3/4"
Jacket Color Ivory, White
Sub Brand Wiremold
Voltage null
