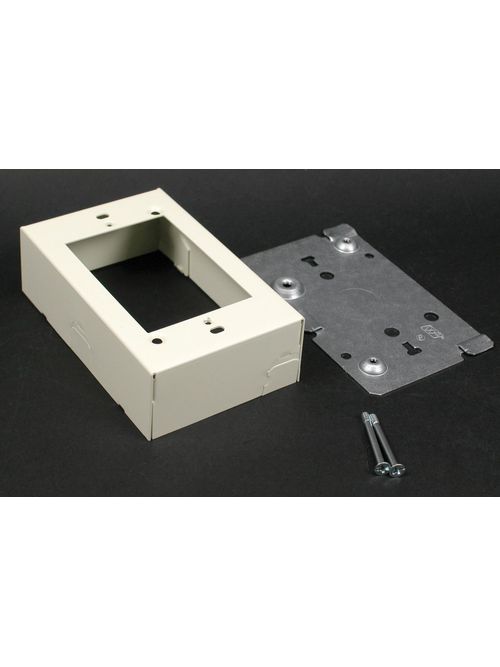

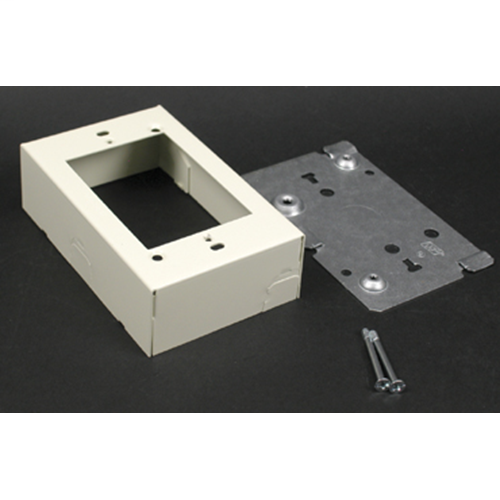

Wiremold V5741 4-5/8 x 2-13/16 x 1-3/8" Ivory Steel 1-Channel Raceway Switch and Receptacle Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$12.07/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Wiremold
Mfg Catalog # V5741
QED Part # 136126
Boxes & Outlets

Features

  • This product meets the material restrictions of RoHS

Specifications

  • Product Depth: 1.5 in
  • Special Features: Low-profile, unobtrusive appearance., Surface mounting, UL5 and ADA compliant, UL and cUL Listed component raceways
  • Product Height: 3.0 in
  • Type: Raceway
  • Product Width: 4.75 in
  • Voltage: 300.0 V
  • Product Volume: 21.38 cu in
  • Application Sector: Commercial
  • Standard: cULus Listed Surface Metal Raceway: File E41751: Guide RJPR
  • Product Weight: 0.44 lb
  • Country Of Origin: US
  • Certifications: UL,NAFTA,ROHS
  • Color: Ivory
  • Product Line: Wiremold

Certifications

  • UL Listed: E41751
  • RoHS Compliant
  • NAFTA Compliant

Overview

Long Description Wiremold 500 Series and 700 Series raceways are ideal for surface mounting small amounts of electrical wiring or communication cables. These rugged raceways offer a low profile appearance which blend with any decor. Available in our exclusive ScuffCoat finish.
GTiN 00786776070460
Length 4-5/8 in
Type Raceway
Material Steel
Product Series 500,700
Applications Commercial, Office, Residential
Component Type Boxes
Country of Origin USA
Family Brand Name Wiremold
Certifications NAFTA,ROHS,UL
Outside Diameter 1 3/8" x 2 13/16"
Jacket Color Ivory, White
Sub Brand Wiremold
Voltage 300 Volt
Width 4.75 in
Color Ivory
Depth 1.5 in
Height 3.0 in
Weight 0.44 lb
UPC 78677607046
